Side-to-Side Adjustment of Front Section of Standard PERMA-GLIDE™ Point

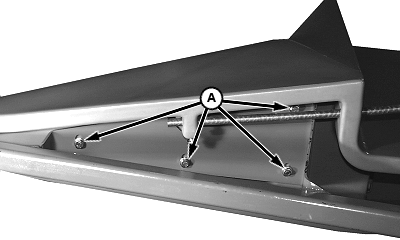

If more clearance is desired between the end of the reel and the inside edge of the front section of the standard PERMA-GLIDE ™ point, loosen four cap screws (A) under front end and adjust point. Tighten cap screws.

A-Cap Screws (4 used)

PERMA-GLIDE is a trademark of Deere & Company.

OUO6091,000160D -19-14MAR03-1/1
