Adjusting Standard PERMA-GLIDE™ Divider Point Height

Adjust cutterbar tilt (see Adjust Platform Cutterbar/Skid Plate Tilt).

Lower platform to the ground.

1. Loosen jam nut (A).

NOTE: Set spring tension so that divider is light but still returns to ground on it's own:

2. Adjust bolt (B) to desired spring tensions

3. Repeat for other divider point.

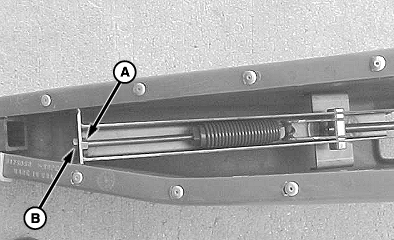

H75684

Left-hand divider point shown


A-Jam Nut
B-Bolt

PERMA-GLIDE is a trademark of Deere & Company.

OUO6091,000160E -19-14MAR03-1/2

Set divider point height so tip is positioned just above soil when platform is in operating position:

1. Loosen jam nut (A).

2. Turn adjusting bolt (B) until desired height is obtained.

3. Tighten jam nut.

4. Repeat for other divider point.

NOTE: In softer ground the divider may need to be adjusted upward to avoid plowing.

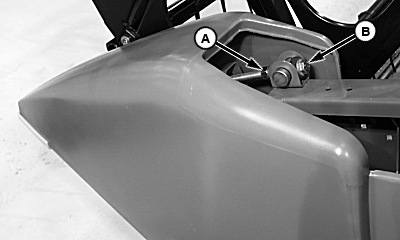

H69589

Left-hand divider point shown


A-Jam Nut
B-Adjusting Bolt

OUO6091,000160E -19-14MAR03-2/2
