Header Warning Light Bulb Replacement

NOTE: Use a flat-blade screwdriver.

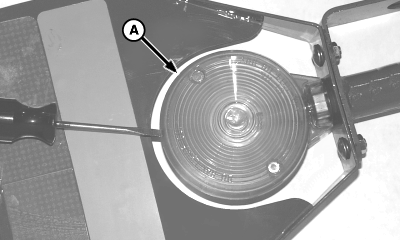

Carefully, pry-off lens (A) from light.

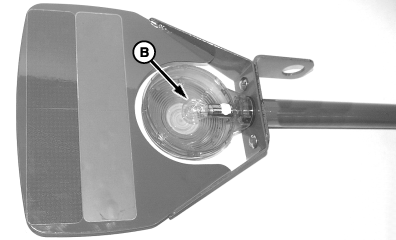

Push bulb (B) in and turn to remove.

Install new bulb.

Press lens back onto light housing.


A-Lens
B-Bulb

H72107
H72106

OUO6091,0001612 -19-14MAR03-1/1
