Skid Plates with Header Height Control Sensors (Optional)-Rigid Only

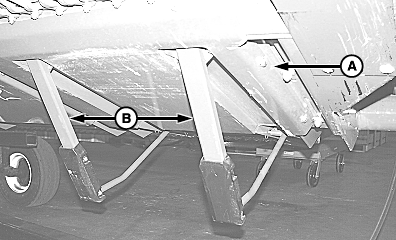

Header height Skid plates (A), on each end of platform are equipped with a sensors arms (B).

These skid plates are provided with cutouts to permit the sensors to seat when the platform is fully lowered.

Sensor arms are attached at the front to a connector shaft which actuates the potentiometer mounted on the skid plate.

Sensors contact the ground up to a maximum cutting height of 450 mm (17-23/32 in.) and control cutting height and lateral tilt of platform.

A-Skid Plate
B-Sensor Arms

OUO6091,0001656 -19-16MAY03-1/2

IMPORTANT: Avoid damage to sensors, place sensors in the lock-out position when transporting or storing platform.

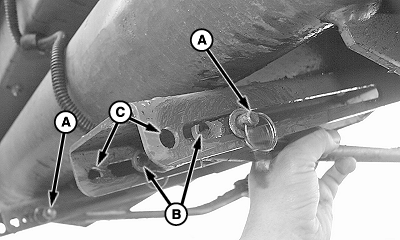

Remove pins (A) and align lock-out holes (B) with holes (C) and insert pins. Repeat steps for other side.

OUO6091,0001656 -19-16MAY03-2/2
