CAUTION: Avoid serious injury. Raise platform and reel completely, set safety stops.
CAUTION: Avoid serious injury. Shut off engine and remove key.
CAUTION: Avoid serious injury from cutterbar movement when auger is turned. Remove knife drive belt (see Remove and Install Knife Drive Belt section).

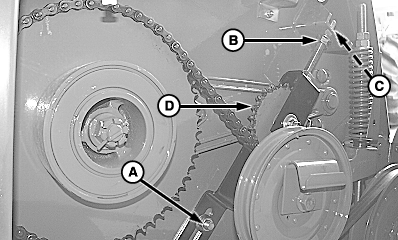

Loosen nuts (A and B), tighten nut (C) and idler assembly (D) will slide down to tighten chain. Tighten nuts (A and B).
A-Nut B-Nuts C-Idler Assembly
OUO6091,0001657 -19-16MAY03-1/1
