Installing Crop Lifters (Attachment, Rigid Only)

Crop lifters (A) may be installed along cutterbar for down and tangled crops.

IMPORTANT: Slots on spool nuts (B) are off center. Install all spool nuts in same direction along cutterbar.

Install spool nuts (B) under each knife guard tip (C) with hardware (D) located directly behind it.

Slide crop lifter with its retainer (E) over knife guard tip and guide rear end of strap into spool nut.

Retain crop lifter (A) with spring pin (F) in bore (2) above knife guard.

IMPORTANT: Check that crop lifters are correctly adjusted by lowering cutting platform onto a flat surface. Crop lifters should touch the ground when skid plates are 50-100 mm (2-4 in.) above the ground.

To alter crop lifter height, change position of crop lifter by using bores (1) or (3) to secure spring pin (E).

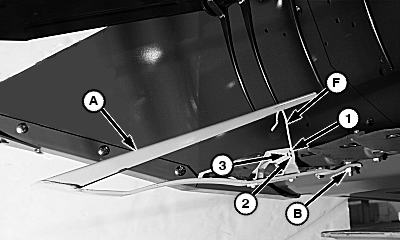

A-QUIK-TATCH™ Crop Lifter
B-Spool Nut
C-Knife Guard Tip
D-Hardware
E-Retainer
F-Spring pin
1-Bore
2-Bore
3-Bore

QUIK-TATCH is a trademark of Deere & Company.

OUO6091,0001658 -19-19MAY03-1/1
