Adjusting Floor Stripper

IMPORTANT: Auger height and fore/aft must be adjusted to proper setting before adjusting floor strippers (see appropriate heading in this section).

NOTE: Once minimum setting is achieved for auger height and fore/aft, adjust floor strippers to give equal settings (clearance) from auger flighting to floor stripper along entire platform.

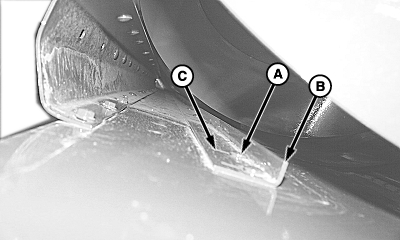

Loosen only cap screws in area of floor stripper that requires adjustment. Floor stripper have slotted mounting holes (C) for adjustment.

Loosen cap screws (A) and adjust floor stripper (B) to proper clearance.

Specification

Floor Stripper to Auger Flighting -Clearance

3 mm

(1/8 in.)

A-Cap Screws
B-Floor Stripper
C-Slotted Mounting Holes
