Adjusting Auger Height

CAUTION: Avoid serious injury. Raise platform and reel completely, set safety stops.

CAUTION: Avoid serious injury. Shut off engine and remove key.

CAUTION: Avoid serious injury from cutterbar movement when auger is turned. Remove knife drive belt (see Remove Knife Drive Belt From Drive Sheave section).

IMPORTANT: To avoid damaging floor or fingers, maintain a minimum 16 mm (5/8 in.) clearance between center auger fingers and floor.

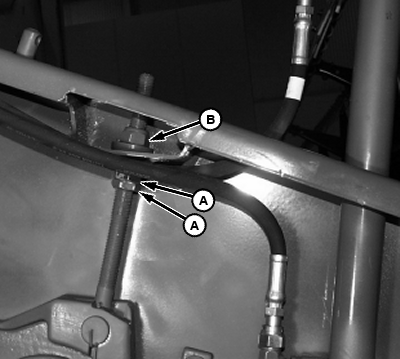

1. On right-hand side of platform, loosen nuts (A) and turn nut (B) to raise and lower auger.

2. On left-hand side of platform, loosen auger drive chain idler (see Auger Drive) and nuts (A) and turn nut (B) to raise and lower auger.

3. Tighten nuts (A) and auger drive idler.

A-Nuts (2 used)
B-Nut

OUO6091,00017E5 -19-12MAR04-1/1
