OMH208502: 600 F and 600 R Series Cutting Platforms, Block File: OUO6091_00017E9_19

causym CAUTION: Avoid serious injury, stay clear of head when inspecting levelness.

IMPORTANT: For accurate leveling, inflate front tires to equal air pressure.

Raise header approximately halfway so that the cutterbar is above the axel.

NOTE: Machine should be parked on level surface.

Use the axel as a comparable for the levelness of the cutterbar.

Stand approximately 5 m (15 ft) in front-center of head.

Visually compare the cutterbar to the front axel of machine.

NOTE: If cutterbar is parallel with front axel of machine, no further procedures are required.

Detach head from machine.

OUO6091,00017E9 -19-15MAR04-1/2

NOTE: There are two shims per side. All four can be used on one side to level head.

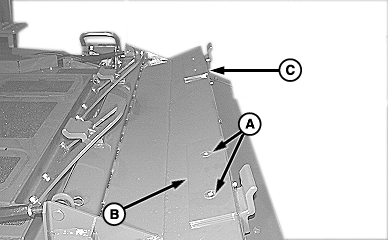

Remove plow bolts (A) on both sides of feeder house and remove or add shims (B and C) to desired side of feeder house to level head.

Repeat procedure if necessary.

A-Plow Bolts (4 used)
B-Shims
C-Shims

OUO6091,00017E9 -19-15MAR04-2/2
