Wedge Kit

NOTE: See your John Deere dealer for proper bundle (after measurement is taken).

A wedge kit allows for proper cutterbar angle on a pre 60 series machine.

Position machine on flat level ground with platform removed.

Position feeder house so face is perpendicular to the ground. To check this a bubble level can be placed on the face of feeder house.

Measure distance (A) between the center of feeder house drive shaft and the ground.

Compare dimension to table and determine amount of wedge angle required.

9050 STS Combines
Dimension (A) Wedge Angle Required
Less Than 710 mm
(28 in.)		 None
710-775 mm
(28-30 1/2 in.)		 1.5° Wedge
775-825 mm
(30 1/2-32 1/2 in.)		 3° Wedge
More Than 825 mm
(32 1/2 in.)		 4.5° Wedge



9000, 10 and 50 Series CWS and CTS Combines
Dimension (A) Wedge Angle Required
Less Than 710 mm
(28 in.)		 None
710-750 mm
(28-29 1/2 in.)		 1.5° Wedge
750-790 mm
(29 1/2-31 in.)		 3° Wedge
More Than 790 mm
(31 in.)		 4.5° Wedge

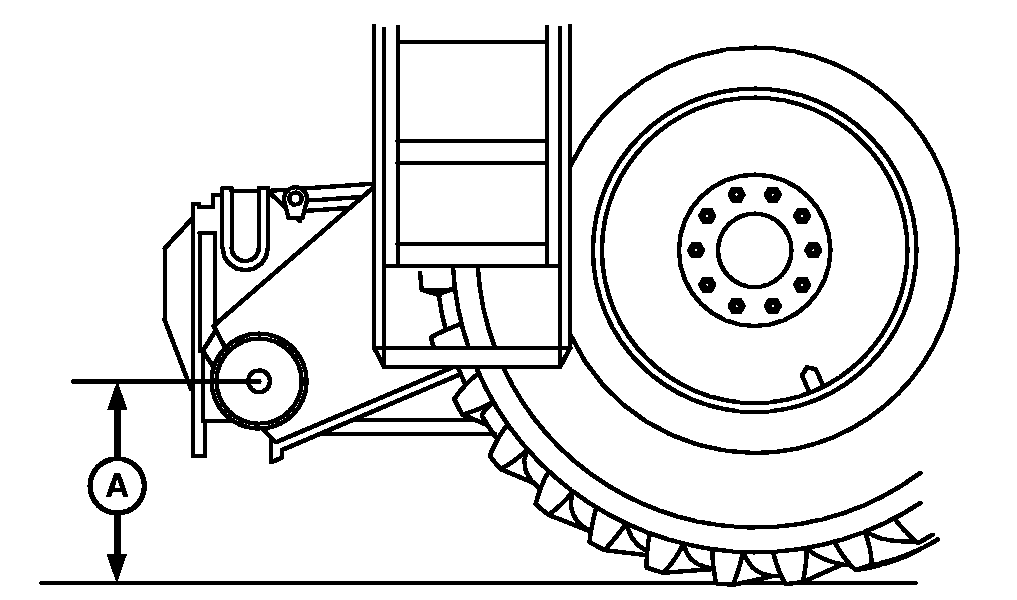

H72297


A-Dimension

OUO6091,00017EA -19-16MAR04-1/1
