OMH208502: 600 F and 600 R Series Cutting Platforms, Block File: OUO6091_00017ED_19

Raised Height Skid Plates (Shoes) Flex only

NOTE: Normal height stone dam (B), 57 mm (2 1/4 in), is shown in Figure 1. Low Stone Dam can also be used with the raised height skid plates.

Raised height skid plates (A) are recommended in tall damp excessive residue and rocks field conditions or for double crop operations with low height cutting range of the flex cuttbar. (see your John Deere dealer).

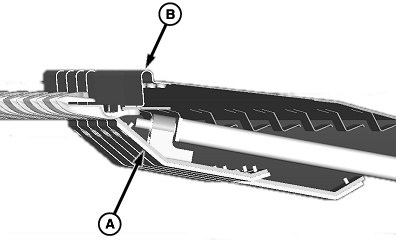

A-Raised Height Skid Plates
B-Stone Dam

Raised Height Skid Plates (Figure 1)

OUO6091,00017ED -19-19MAR04-1/1
