Description of Automatic Header Height Control System

The Automatic Header Height System compensates for uneven ground and controls the horizontal and vertical position of the header. The system continuously compares the preset position and the actual position and thus keeps the header in the desired working position. Desired values are entered by means of the rotary potentiometers. Information about the actual position come from the potentiometers on the components. The control board processes both signals and adjusts the header's position accordingly by means of the hydraulic system.

Lateral Tilt Adjustment

There are two operating modes for the Lateral Tilt Adjustment:

  • Manual Adjustment - In this mode the hydraulic components are directly activated via the multi-function handle.
  • Automatic Adjustment - In this mode the parallel adjustment of the header in relation to the ground is carried out via skid plates. This ensures that the distance between the header and the ground is equal on both the left-hand and right-hand sides.

Platform Height Adjustment

There are four operating modes for the Platform Height Adjustment:

  • Manual Adjustment - In this mode the hydraulic components are directly activated via the multi-function lever.
  • Automatic Header Height Resume - In this mode the platform can be set to any position within the feeder house range.
  • Automatic Header Height Sensing - In this mode the height of the platform is maintained with height sensors attached to the platform. This ensures that the automatic header height sensing is always constant.
  • Automatic Active Header Float Control - In this mode the combine maintains a constant header pressure with ground contact.

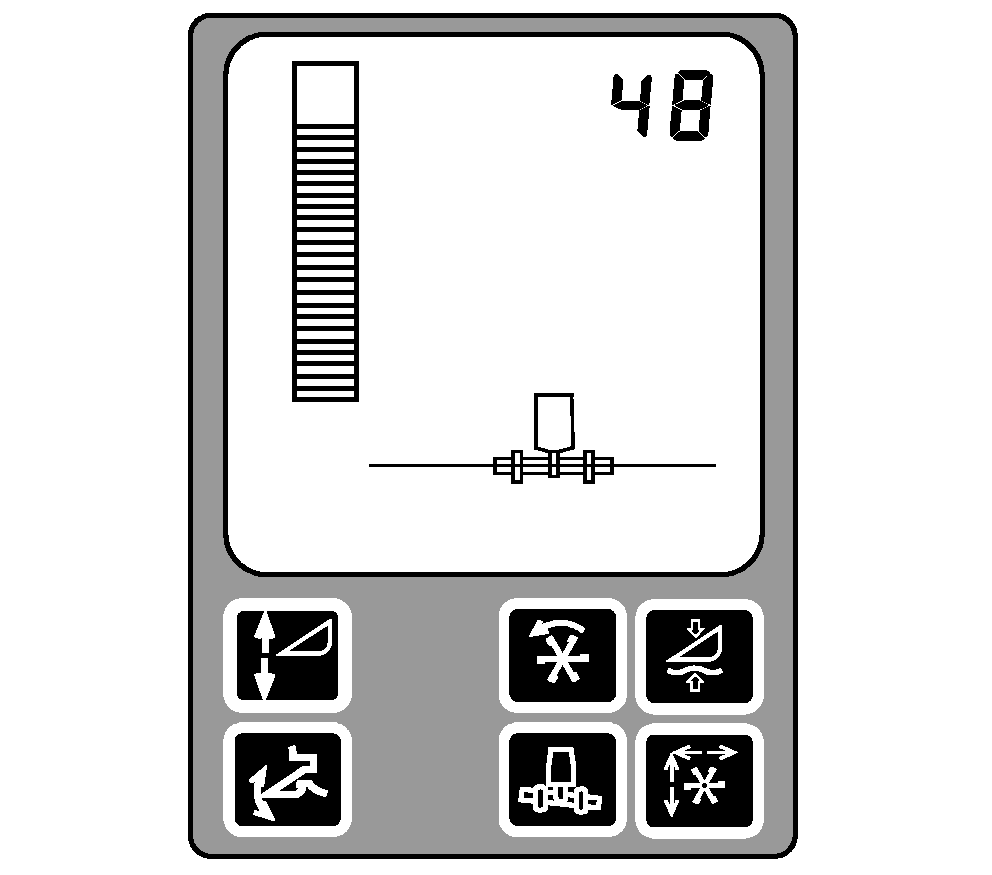

H71413

OUO6043,000161F -19-12MAR03-1/3

NOTE: It is possible to override all the automatic modes manually.

Response Rate Control For Header Height Sensing and Active Header Float Pressure (Automatic Functions)

Dial (A) controls the response rate of the header raise/lower functions when in the automatic modes.

Requirements:

  • Engine running
  • Road safety switch in field position
  • Header drive enabled

Operation:

Press switch (B) to enable Header Height Control.

Press activation button (C) to lower the header to the preselected position. Use the response rate dial (A) to adjust the rate at which header follows ground contours.

Turn clockwise - Increase response rate.

Turn counterclockwise - Decrease response rate.


A-Header Height Sensing/Active Header Float Rate Control Dial
B-Header Height Control Switch
C-Header Height Control Activated Switch

ZX018979
H71414
H74809

OUO6043,000161F -19-12MAR03-2/3

Response Rate Control For Header Height Resume (Manual Functions)

Dial (A) controls the response rate of the header height and manual raise/lower full range movement when in the manual mode (with or without CONTOUR MASTER control function activated).

Requirements:

  • Engine running.
  • Road safety switch in field position.
  • Header drive enabled.
  • Header Height Control switch (B) activated or deactivated.

Operation:

Use response rate dial (A) to adjust the rate at which header will react when being raised or lowered by switch (C).

Turn clockwise - Increase response rate.

Turn counterclockwise - Decrease response rate.

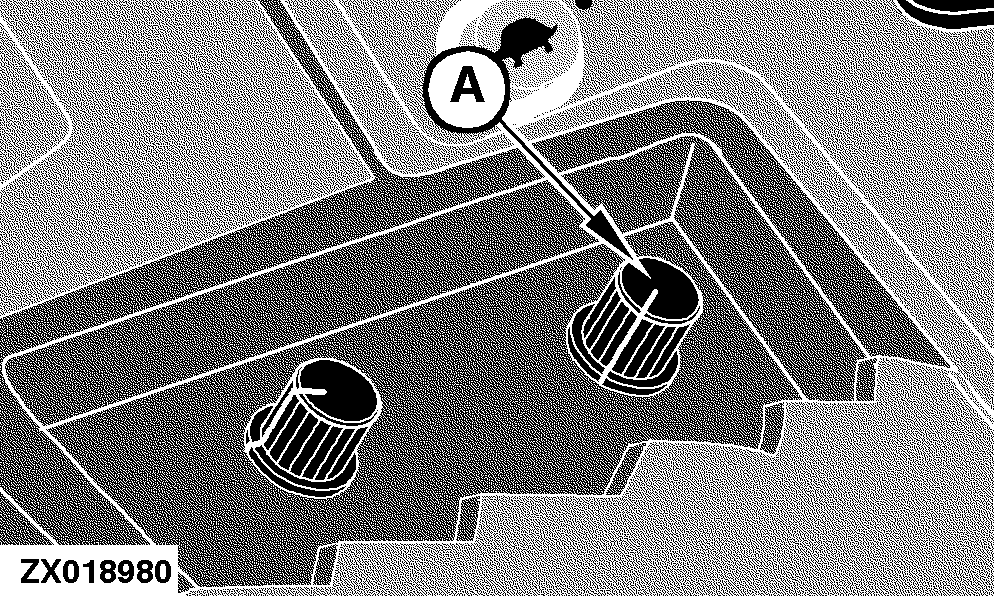

A-Header Height Resume Manual Control Dial

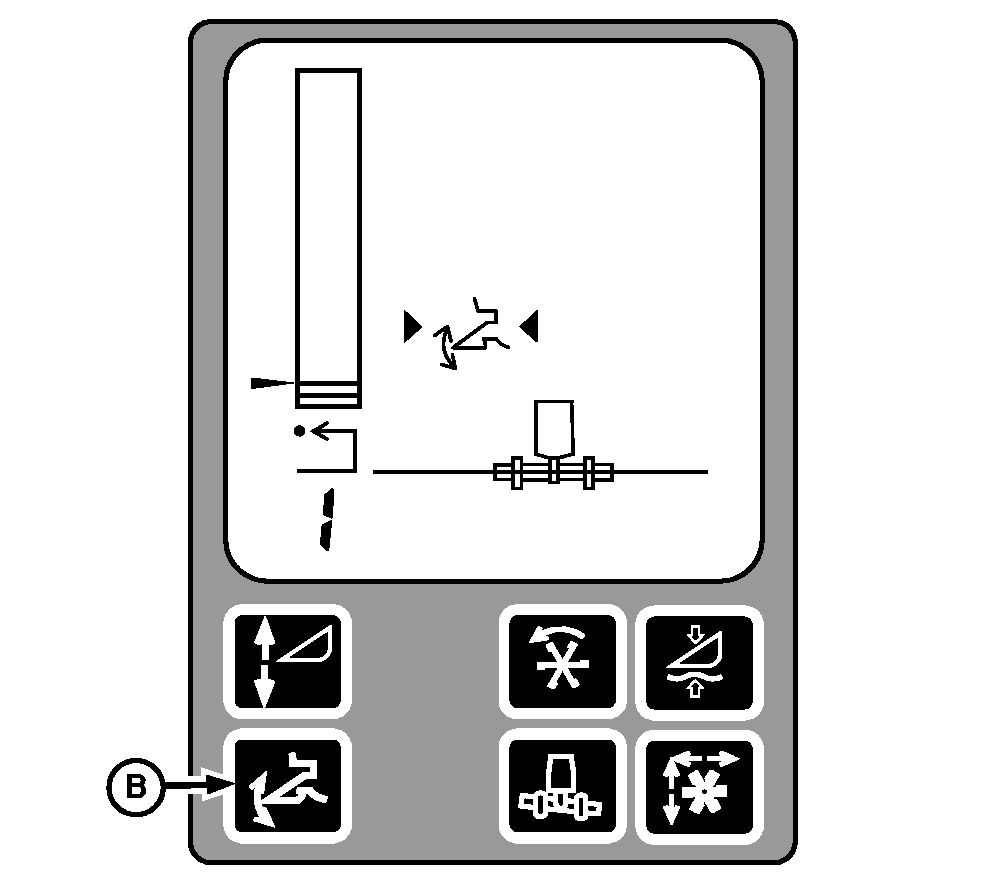

B-Header Height Resume Switch

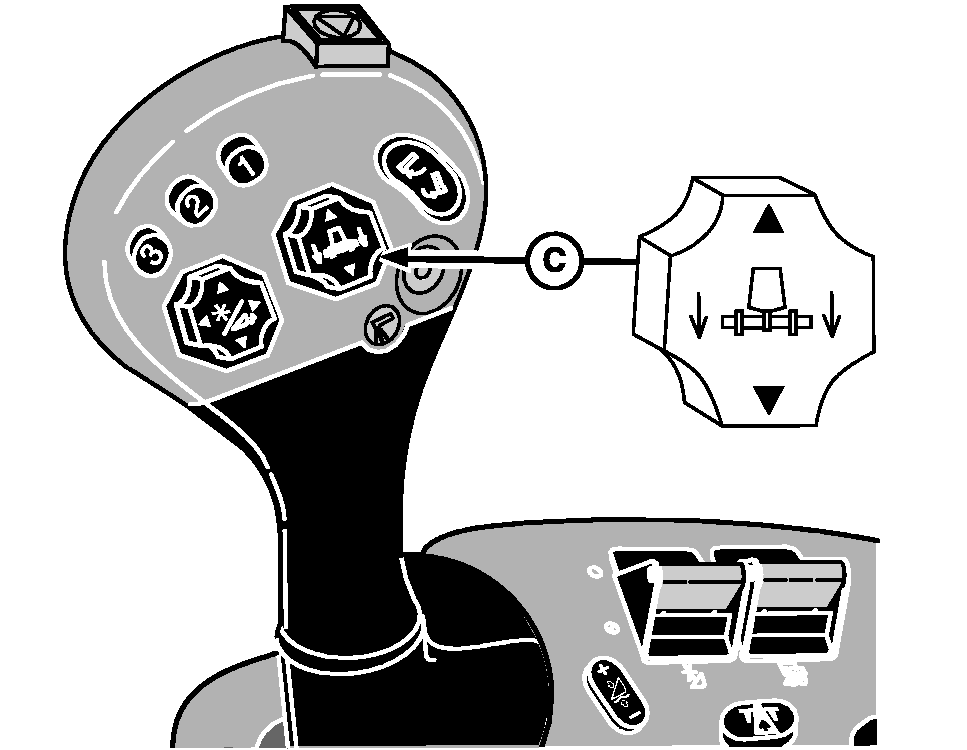

C-Header Lift Switch

ZX018980
H75002
H75004

OUO6043,000161F -19-12MAR03-3/3
