CAUTION: Engine must be off, parking brake set and key removed.

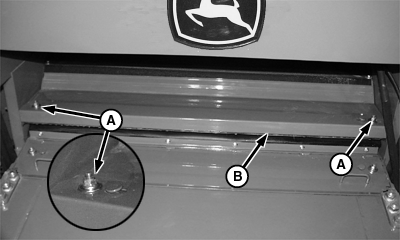

Loosen locking nuts (A) on each side of the door and push locking nuts towards center of machine.
Pull door (B) forward to remove.

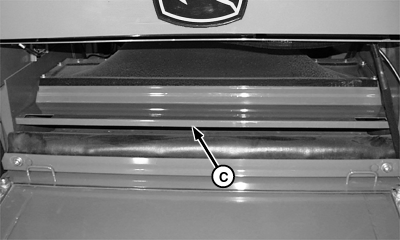

Slide door (C) forward to remove.
A-Locking Nuts B-Door C-Door
OUO6075,0001BDE -19-02JAN02-1/1
CAUTION:
Engine must be off, parking brake set and key removed.
