Discharge Beater-Wing Replacement

CAUTION: Shut off engine, set parking brake and remove key.

NOTE: Beater wings can be turned over once for additional use.

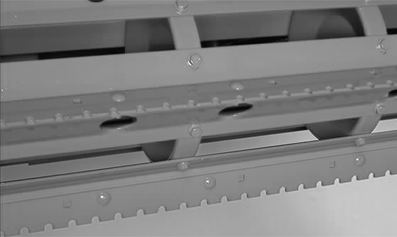

Beater wings can be replaced without removing beater from combine.

Remove cap screws holding wing and remove wing. Three wings are attached with cap screws and three wings are attached with cap screws, nuts and washers.

Replace wing and tighten nuts or cap screws to specification.

Remove and replace wear strips as required. Tighten cap screws to specification.

Specification

OUO6075,0001CC3 -19-06MAR02-1/1
