Setting Personal CROP1 - CROP5 and Factory CROP2 (WHEAT 2) Settings (Manual Calibration)

NOTE: During harvest (separator engaged, header engaged, engine at high idle) the calibration button must be pressed twice in consecutive order to begin manual calibration. Before harvesting pressing the calibration button once will begin manual calibration.

1. Press calibration button (A). Threshing speed (B) setting will flash.

2. Press up or down arrow (C) to increase or decrease threshing speed in increments of ten.

NOTE: By holding the up or down arrow for more that four seconds the threshing speed will increase or decrease by increments of one hundred.

3. Press calibration button. The concave clearance setting (D) will flash.

4. Press up or down arrow to increase or decrease concave clearance in increments of one.

NOTE: By pressing and holding the up or down arrow for more than four seconds the concave clearance will increase or decrease by increments of ten.

5. Press calibration button. Fan speed setting (E) will flash.

6. Press up or down arrow to increase or decrease fan speed in increments of ten.

NOTE: By holding the up or down arrow for more that four seconds the fan speed will increase or decrease by increments of one hundred.

7. Press calibration button. Chaffer clearance number (F) setting will flash.

8. Press up or down arrow to increase or decrease chaffer clearance in increments of one.

H74335


A-Calibration Button
B-Threshing Speed
C-Up or Down Arrow
D-Concave Clearance
E-Fan Speed
F-Chaffer Clearance Number

OUO6075,0002482 -19-19NOV02-1/2

9. Press calibration button. Sieve clearance number (A) setting will flash.

10. Press up or down arrow to increase or decrease sieve clearance in increments of one.

NOTE: If calibrating the Factory 2 Crop settings pressing the calibration button will advance to the threshing speed again, since the name cannot be changed.

11. Press the calibration button to move to the crop name settings.

12. The first character in the name will start to flash.

13. Use the up or down arrow to change to the desired letter.

14. To advance to the next letter in the name press the calibration button. Repeat through all the characters.

15. Press the enter button (B) to end the calibration. The text will alternate between the name and EOC.

16. Press the enter button again will save the calibration.

17. Press the back button (C) to exit without saving. The text will alternate between the name and abort, and the settings are not saved

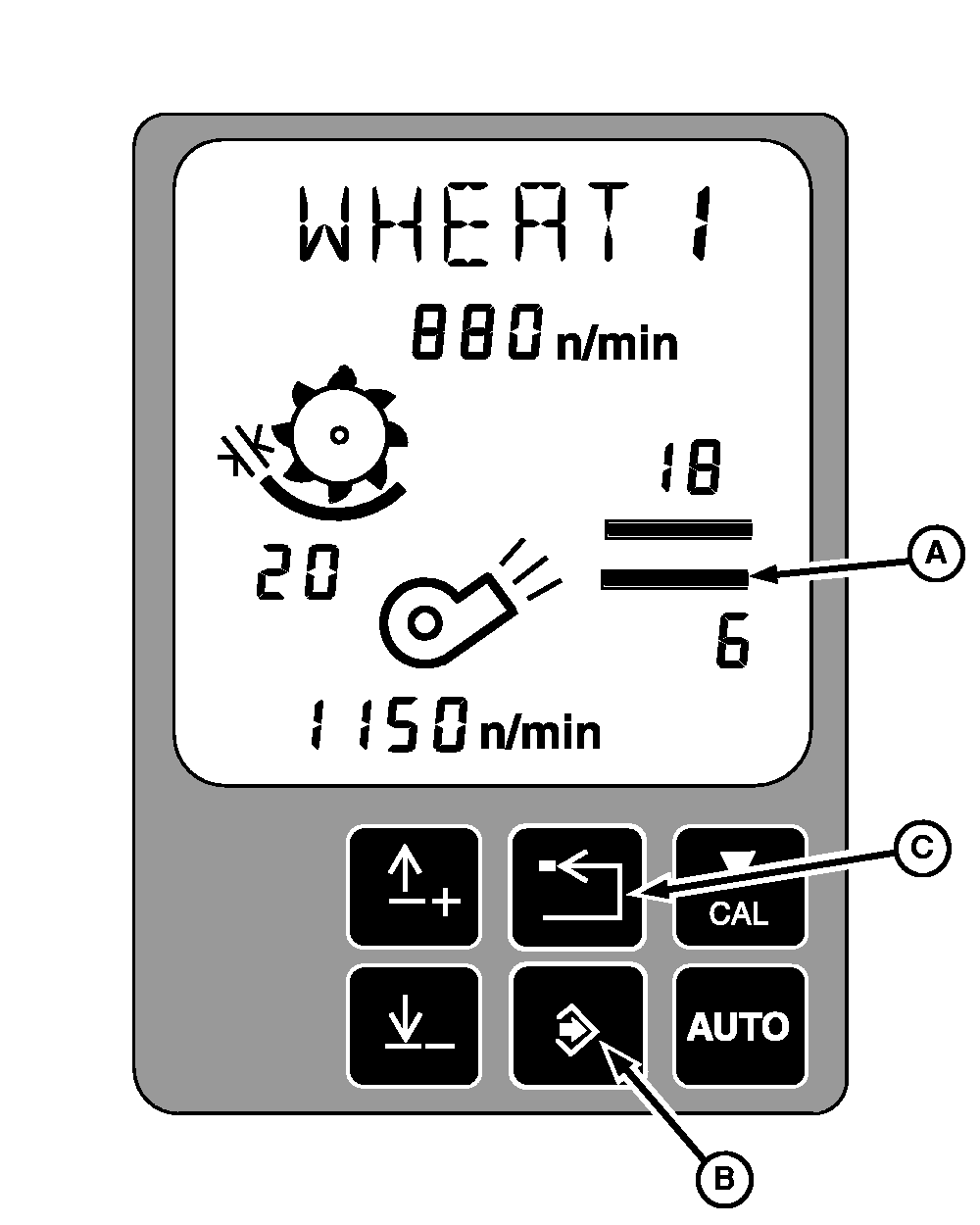

H74336


A-Back Button or Abort
B-Enter Button
C-Sieve Clearance Number

OUO6075,0002482 -19-19NOV02-2/2
