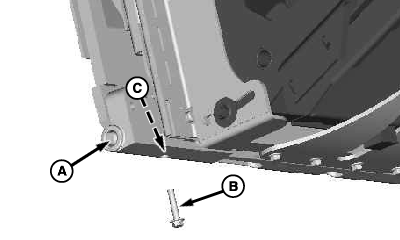

To remove header if shear screw should fail, push latching pins (A) through latch plates and install M12 cap screw (B) in hole (C). Repeat on opposite side.
A-Latching Pins B-Cap Screw C-Hole
