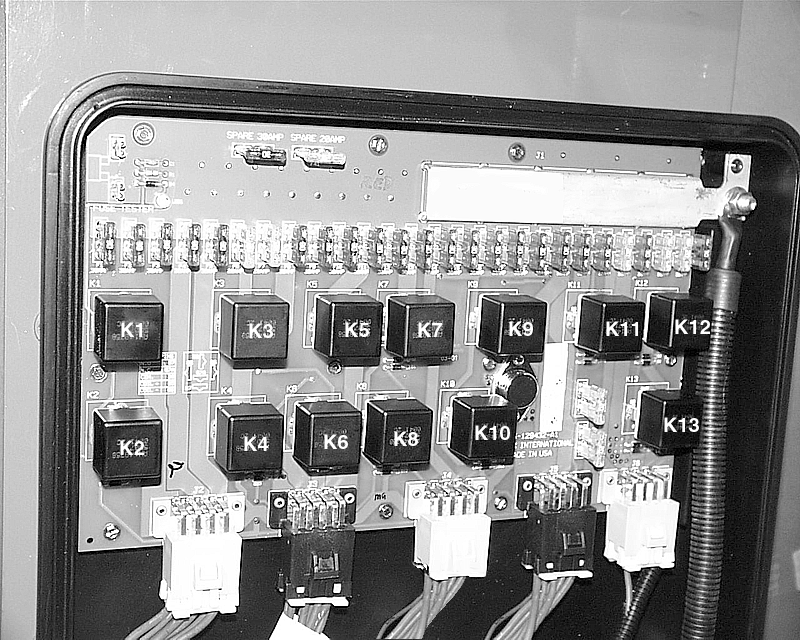

K1-Left Control Unit Power
K2-Control Unit Power
K3-Press. Fan Power
K4-Motor Power
|
K5-Fan Speed Adjust Power
K6-Recirculation Fan Power
K7-Unused
K8-Conv. Outlet Switched Power
|
K9-Electronic Power
K10-Service Lamp Power
K11-Header and Engine Control Unit Power
|
K12-Engine Control Unit Power
K13-Unused
|
