CAUTION: Raise feeder house, lower safety stop, shut off engine, set parking brake and remove key.
A stone trap protects the cylinder and concave from damage.

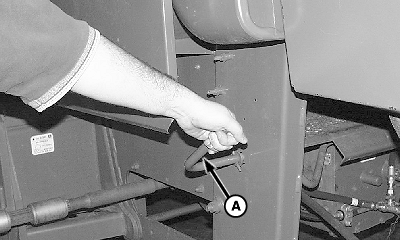

To dump stone trap, move lever (A) up. Close by pushing lever down.
A-Lever
OUO6075,000251A -19-14JAN03-1/1
CAUTION:
Raise feeder house, lower safety stop, shut off engine, set parking brake and remove key.
