CLIMATRAK Automatic Temperature Control

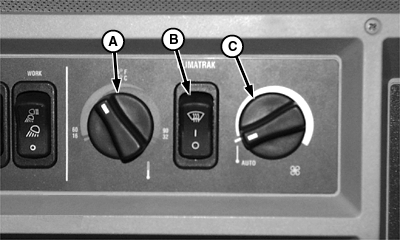

CLIMATRAK system consists of a temperature selector knob (A), mode selector switch (B), a fan speed control knob (C), and a cab temperature sensor (D).

With mode selector switch in "OFF" position (bottom of switch pressed in), all power to air conditioning system will be off.

In "ON" position (middle position), power is supplied for normal functions.

In DEFOG position (top of switch pressed in), power is supplied to compressor regardless of temperature selection to remove moisture from air even in heat mode.

Desired cab temperature is selected with temperature selector dial. Turn dial to desired temperature setting.

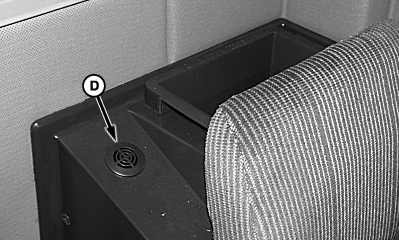

NOTE: Cab temperature sensor (D) is located behind instructional seat. Do not cover this sensor or system may not operate correctly in AUTO mode.

Recirculation fan controls air coming out of louvers. Fan speed control switch controls an infinitely variable fan. It also has a detent position for automatic fan speed operation. In this position, fan speed is determined by difference between selected temperature and actual cab temperature. As temperature approaches set point, fan speed decreases.

A-Temperature Selector Dial
B-Mode Selector Switch
C-Fan Speed Control Dial
D-Cab Temperature Sensor

OUO6075,000281E -19-17MAR03-1/1
