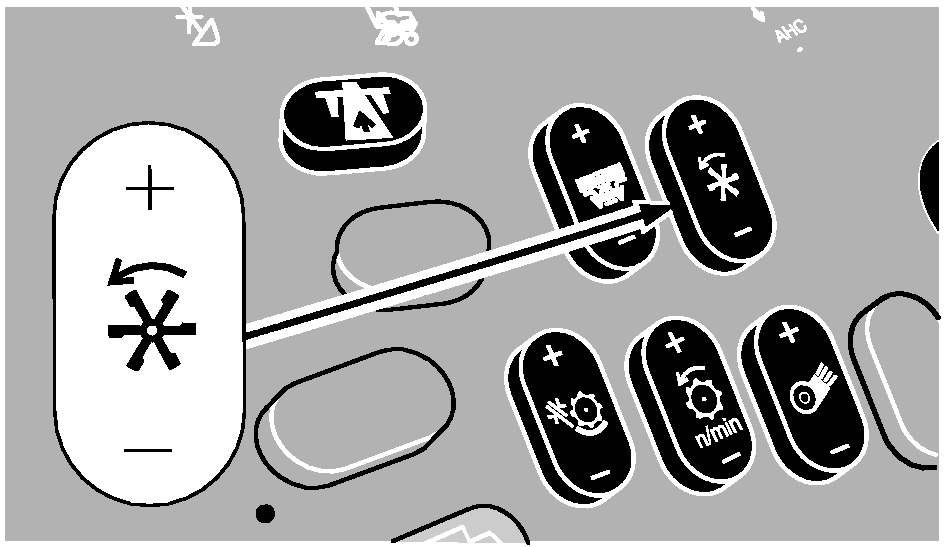

Reel Manual Speed Switch (Black)

NOTE: Turn Reel DIAL-A-SPEED off for manual control. Reel DIAL-A-SPEED in automatic function can be over ridden by the manual control, but will resume operation when the switch is released.

With header engage and separator engage switches on, push and hold plus (+) symbol to increase speed or push and hold minus (-) symbol to decrease speed.

OUO6075,0002820 -19-17MAR03-1/1
