Shifting Feeder House

IMPORTANT: Allow header to come to a complete stop before shifting feeder house reverser.

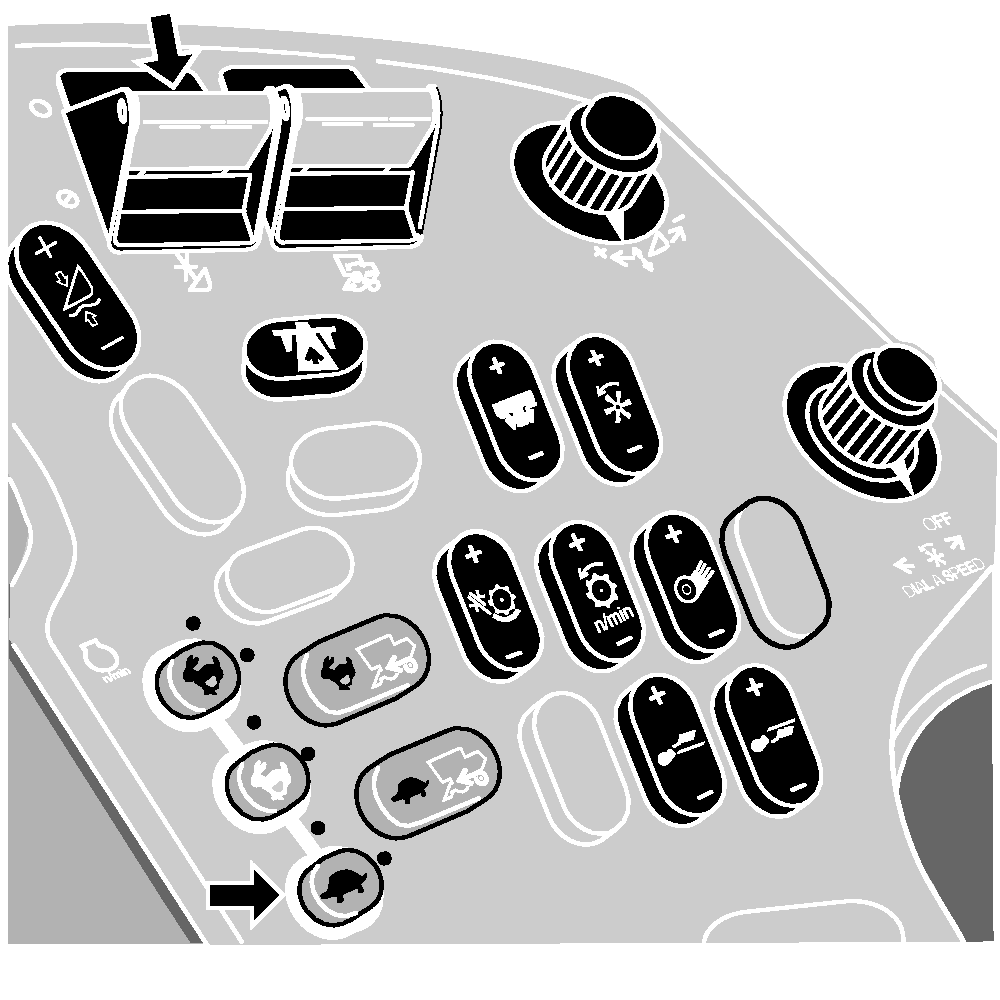

1. Stop header by switching off yellow header drive switch.

2. Throttle engine to slow idle.

3. Push down, pull back and hold down on feeder house reverser button.

4. Release button as soon as feeder house is free of "slug".

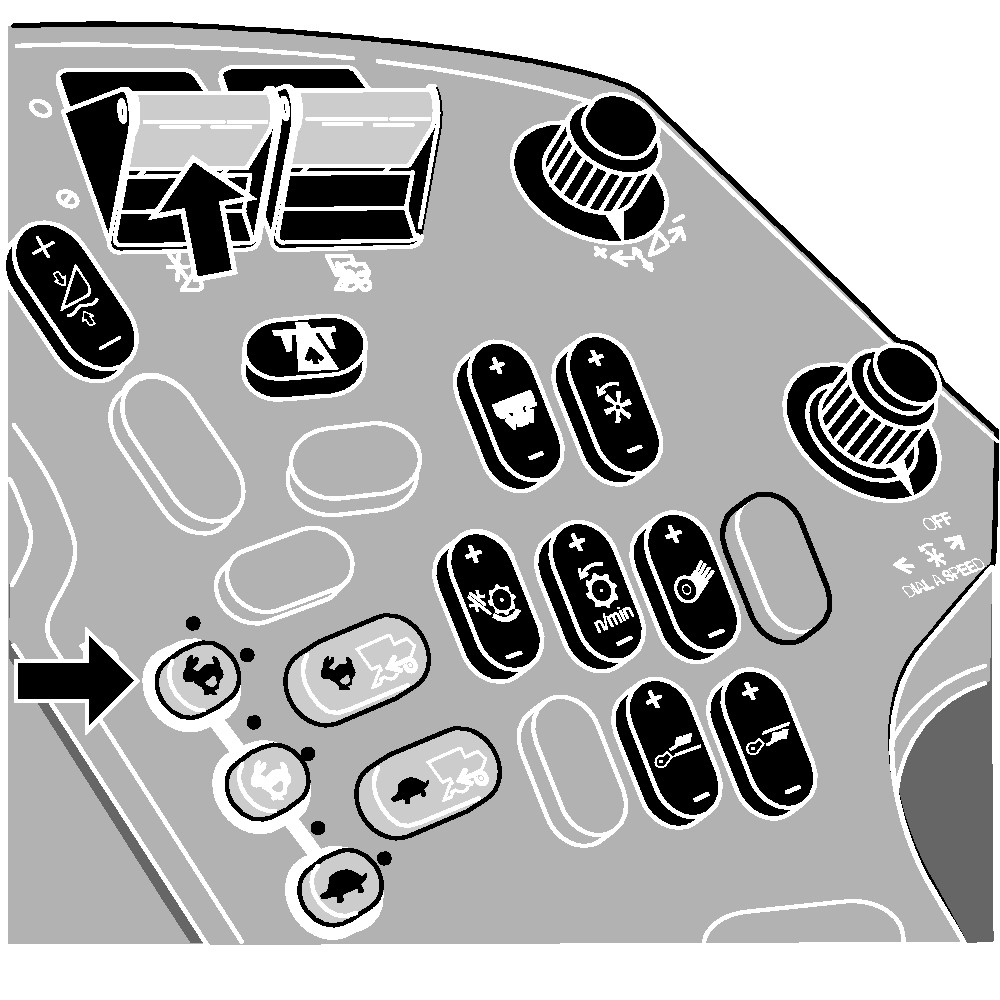

5. Throttle engine to high idle.

6. Resume harvesting.

IMPORTANT: During reverser operation, never attempt to force "slugs" through combine by repeated cycling of reverser drive. Repeated cycling shortens life of components.

H74816
H74817

OUO6075,000283A -19-17MAR03-1/1
