Header Activation Buttons (Black)

When pressing any of the buttons (A), (B) or (C), the following functions are performed:

  • Header Height Resume
  • Header Height Sensing
  • CONTOUR MASTER Control
  • Active Header Float
  • Reel Position Resume

The electronic control system will move the header back to preselected positions.

NOTE: All header positions obtained by pressing buttons (A), (B) or (C) may be overcome by pressing switches (D) or (E). Once activation buttons have been manually overcome, press the desired activation button to reactivate the system.

Activation button must be pressed again to resume auto function.

The activation buttons can be activated only when:

1. A properly equipped header is connected to the combine.
2. The engine is running.
3. The road transport disconnect switch is in the field position.
4. Header Height Resume, Header Height Sensing, Active Header Float mode is enabled.
5. The header engage switch is engaged.

The system is activated by pressing the header activation buttons in the multi-function handle. The header control system will then take control and move the header to the selected position.

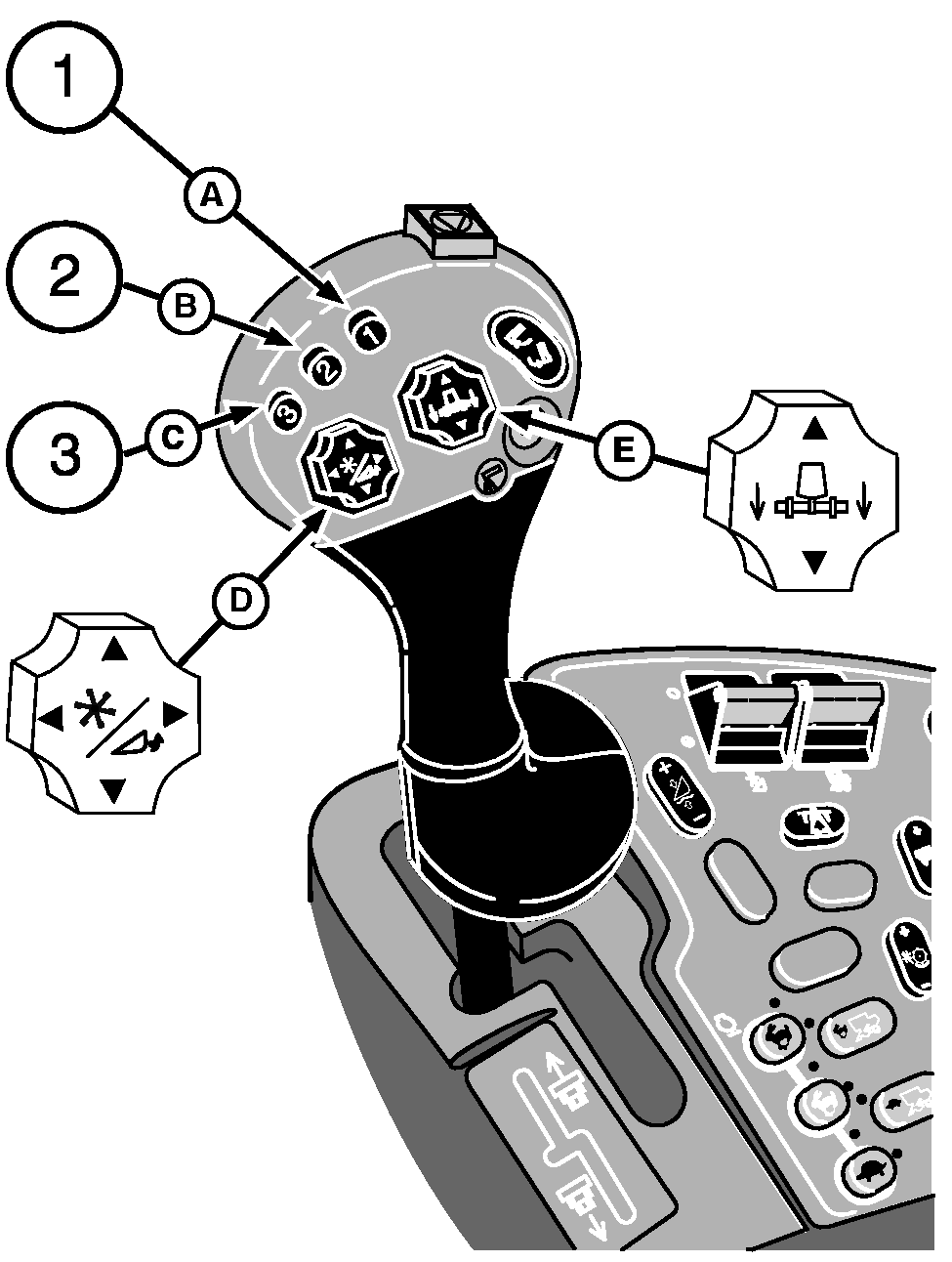

H74735


A-Activation Button 1
B-Activation Button 2
C-Activation Button 3
D-Reel Lift and Reel Fore/Aft
E-Header Raise and Lower and Tilt Switch
