CounterShaft Right-Hand Front Belt-Replacing

causym CAUTION: Shut off engine, set parking brake and remove key.

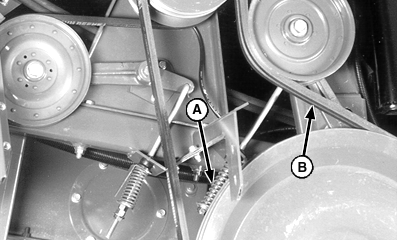

Loosen idler spring (A) and remove belt (B).

Install new belt.

Adjust belt idler tension spring to end of gauge.


A-Idler Spring
B-Right-Hand Front Belt

H62320

OUO6075,0002853 -19-18MAR03-1/1
