Unloading Auger Drive Belt-Replacement

CAUTION: Shut off engine, set parking brake and remove key.

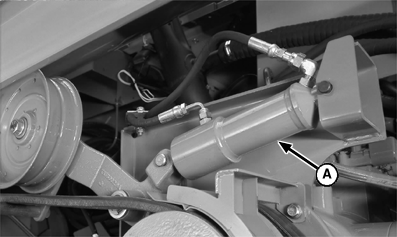

Be certain drive is disengaged and hydraulic cylinder (A) is retracted.

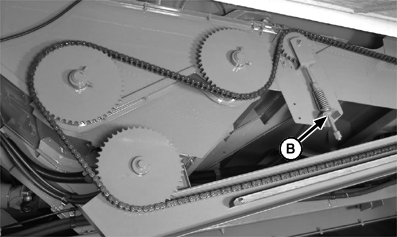

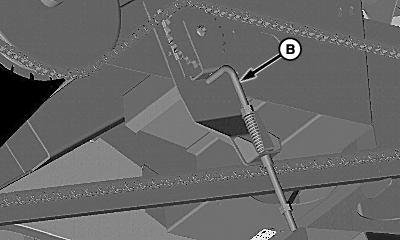

Loosen tensioner (B) for unloading auger drive chain.

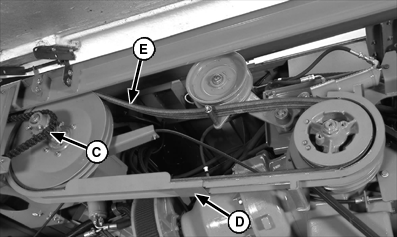

Remove chain from driver sprocket (C) on countershaft.

Remove four cap screws securing belt trap (D).

Remove belt trap and old belt (E).

Install new belt and replace belt trap.

Install drive chain and adjust chain idler spring to the gauge.

A-Hydraulic Cylinder
B-Tensioner
C-Sprocket
D-Belt Trap
E-Belt
