Shoe, Fan and Conveyor Auger Belt-Adjusting

causym CAUTION: Shut off engine, set parking brake and remove key.

Loosen locking nut (A).

Tighten nut (B) until washer (C) aligns with end of gauge (D).

Tighten locking nut.

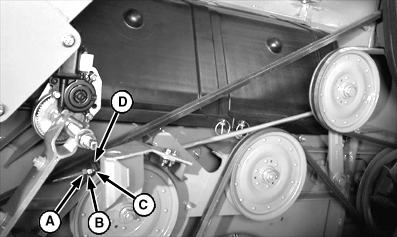

H54521

Shield Removed for Clarity


A-Locking Nut
B-Nut
C-Washer
D-Gauge

OUO6075,0002861 -19-18MAR03-1/1
