Shoe, Fan and Conveyor Auger Belt-Replacing

CAUTION: Shut off engine, set parking brake and remove key.

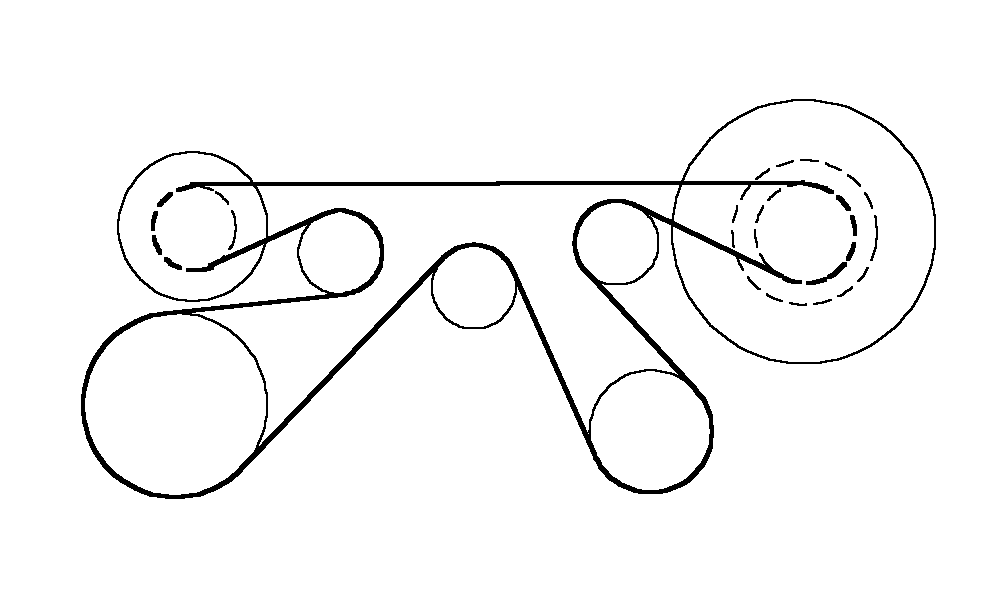

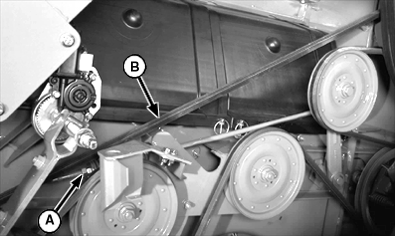

Remove the right-hand front countershaft and cleaning fan variable drive belts. Loosen tension on idler nut (A) and remove the shoe, fan and conveyor auger drive belt (B).

Install new belt.

Adjust belt idler tension spring to end of gauge.

Reinstall front jackshaft and fan variable belts and adjust idler tensions.

A-Nut
B-Belt

OUO6075,000286C -19-18MAR03-1/1
