Engine Accessory/Fan Drive Belt-Replacing
 CAUTION:
Shut off engine, remove key and set parking brake.
1.
Loosen nut (A) and remove rotary screen drive belt (B).
A-Nut
B-Rotary Screen Drive Belt
|
|
|
|
OUO6075,0002870 -19-18MAR03-1/3
|
|
2.

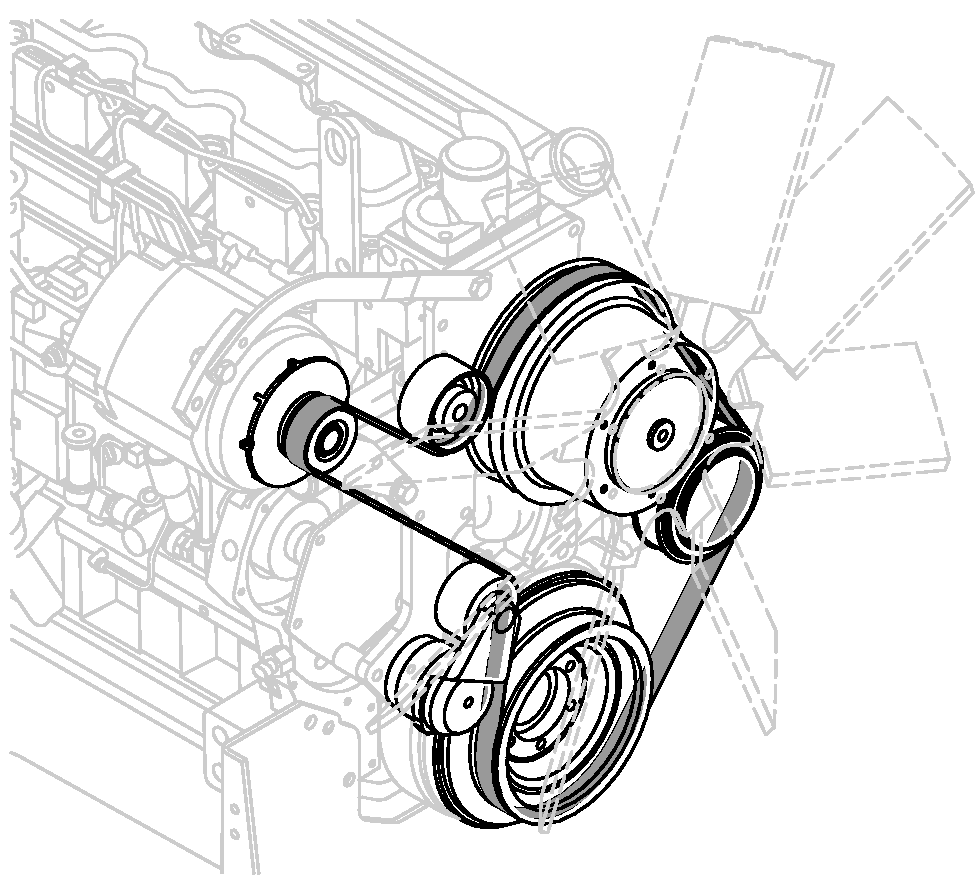

Remove engine accessory drive belt, by inserting 1/2 inch drive breaker bar (A) into square hole in idler to release tension on belt.
3.

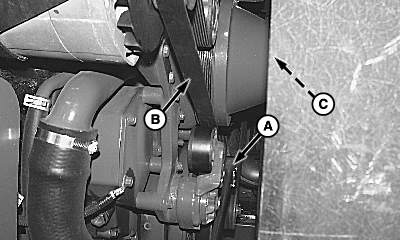

Remove belt (B) from engine. Work belt over fan (C) and remove belt.
A-1/2 Inch Breaker Bar
B-Belt
C-Fan
|
|
|
|
OUO6075,0002870 -19-18MAR03-2/3
|
|
4.
Install new belt (B).
5.
Tighten nut (A) until gauge aligns with end of spring.
A-Nut
B-Belt
|
|
|
|
