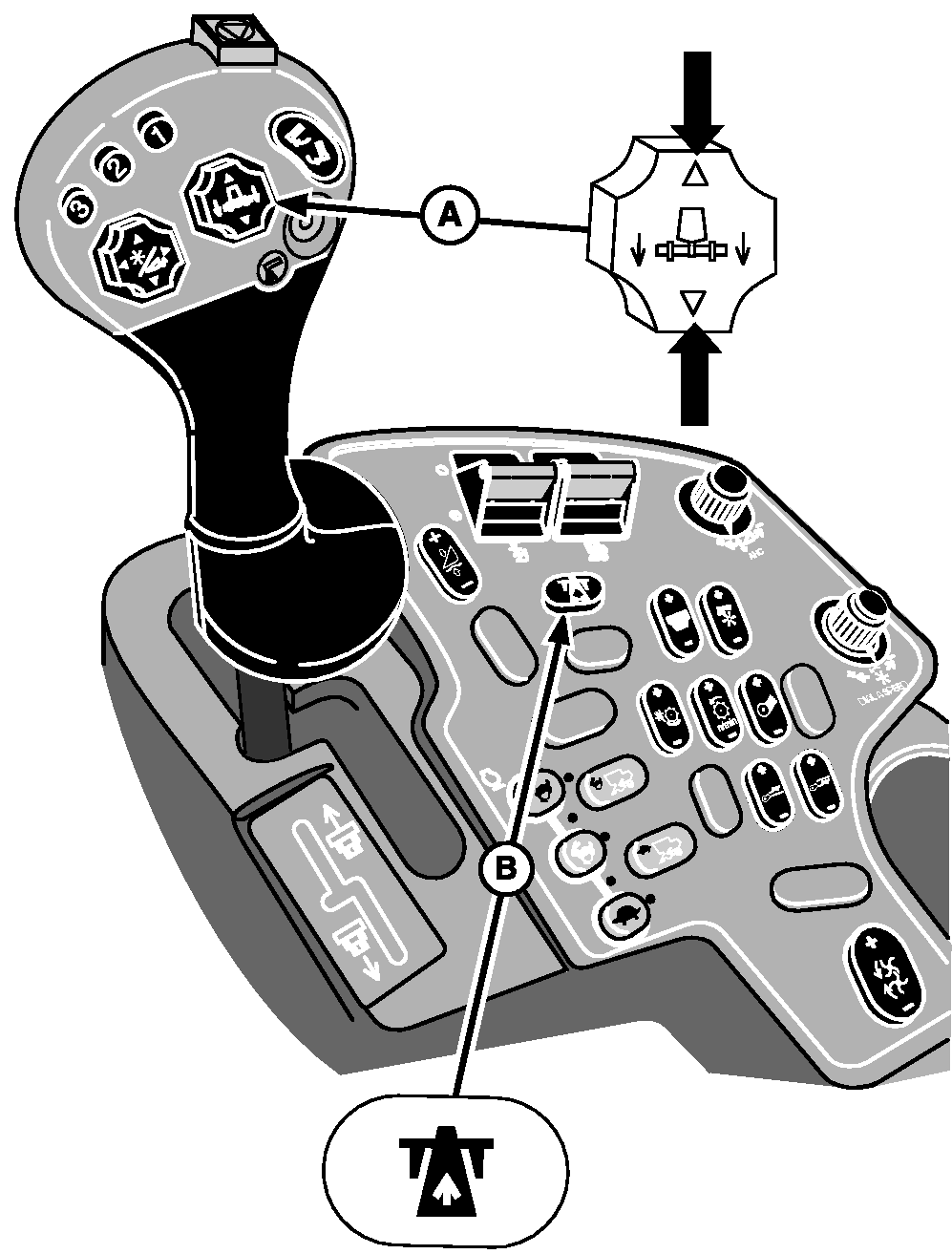

Header Lift Switch (Black)IMPORTANT: Switch and header movements are opposite 50 Series models. NOTE: Header lift switch has two detent positions. Pushing part way in on header lift switch will cause header to slowly raise/lower. Pushing all the way in will cause header to raise/lower at a faster rate. To raise or lower the header, press and hold bottom or top of header lift switch (A), the road transport disconnect switch (B) must be in field position. Press and hold top of switch to raise header. Press and hold bottom of switch to lower header.
|
|
OUO6075,000287B -19-19MAR03-1/1 |
