Chaffer Calibration (Optional)-Field Operation

IMPORTANT: Make sure chaffer is clear of all debris before calibrating.

The chaffer adjust motor and the chaffer element are calibrated using this calibration procedure. Chaffer calibration procedure must be performed after manually adjusting the chaffer motor or to restore accuracy of system.

Turn key switch to "RUN" position or start the combine.

Press diagnostics button. DIA will display on triple display tachometer.

H71445

OUO6075,0002887 -19-20MAR03-1/6

Press calibration switch. CAL and conc will appear on tachometer.

H68151

OUO6075,0002887 -19-20MAR03-2/6

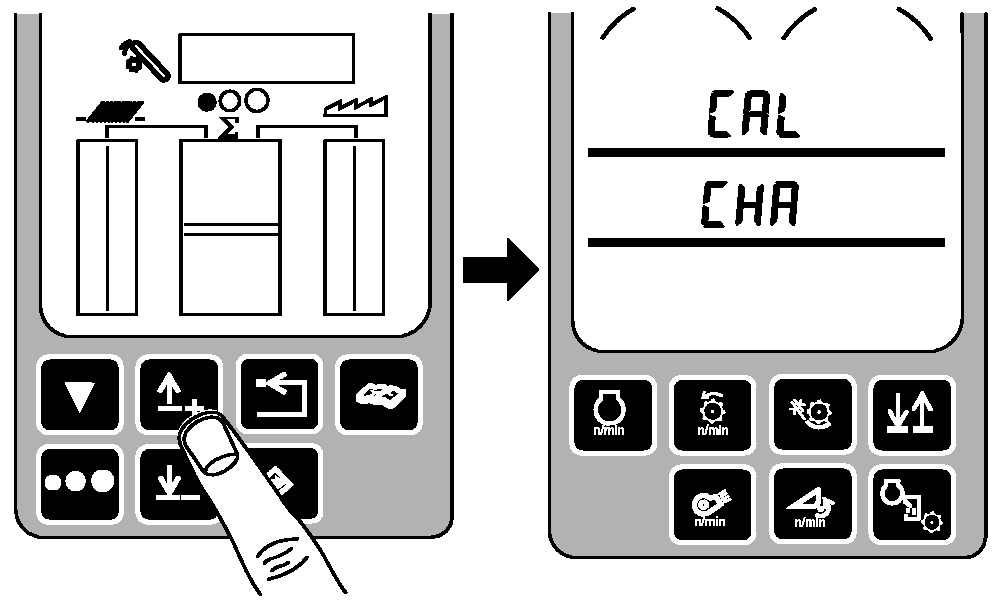

Press up or down arrow keys until CAL and CHA appears on tachometer.

H74819

OUO6075,0002887 -19-20MAR03-3/6

Press enter switch.

NOTE: When the display has HOLd displayed on the triple display tachometer the chaffer is opening and closing automatically.

Hold will be displayed on middle line of triple display tachometer.

H75313

OUO6075,0002887 -19-20MAR03-4/6

HOLd will change to EOC when calibration is complete.

H74822

OUO6075,0002887 -19-20MAR03-5/6

When EOC is displayed on the triple display tachometer press the enter switch. Calibration for chaffer is complete.

H68162

OUO6075,0002887 -19-20MAR03-6/6
