Sieve Calibration (Optional)-Field Operation

IMPORTANT: Make sure sieve is clear of all debris before calibrating.

The sieve adjust motor and the sieve element are calibrated using this calibration procedure. Sieve calibration procedure must be performed after manually adjusting the sieve motor or to restore accuracy of system.

Turn key switch to "RUN" position or start the combine.

Press diagnostics button. DIA will display on triple display tachometer.

H71445

OUO6075,000288D -19-20MAR03-1/6

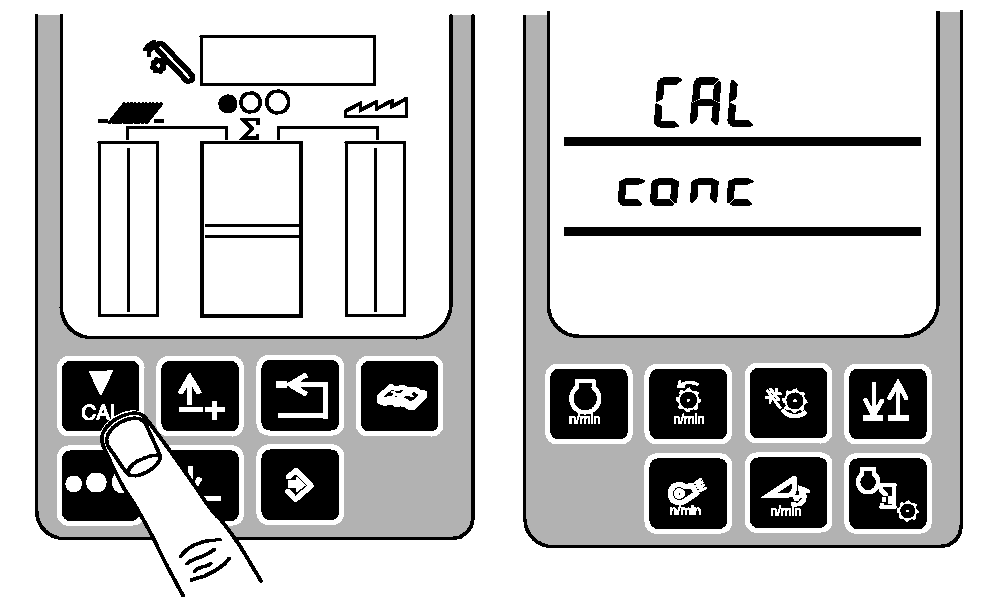

Press calibration switch. CAL and conc will appear on tachometer.

H68151

OUO6075,000288D -19-20MAR03-2/6

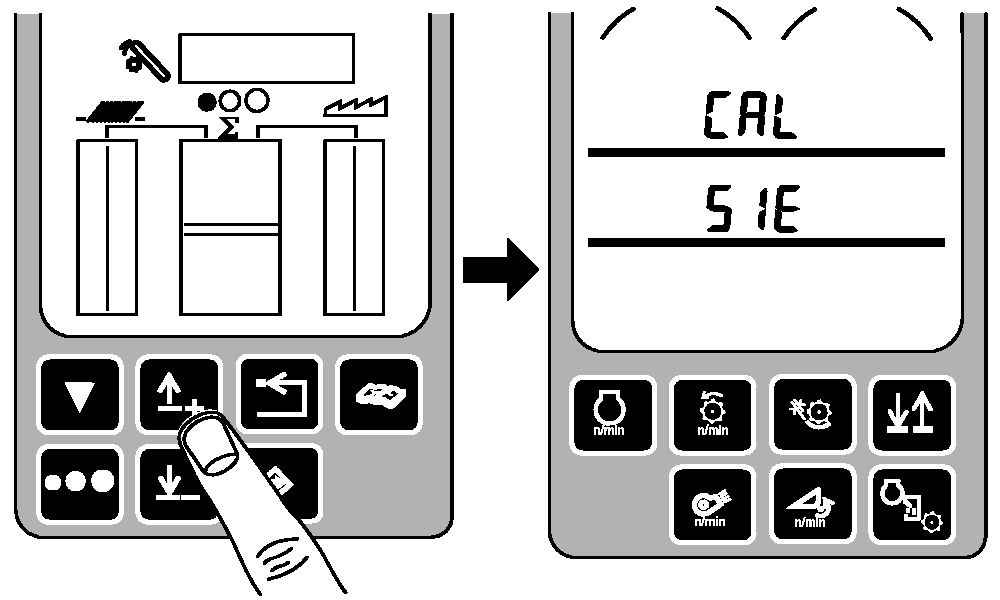

Press up or down arrow keys until CAL and SIE appears on tachometer.

H74830

OUO6075,000288D -19-20MAR03-3/6

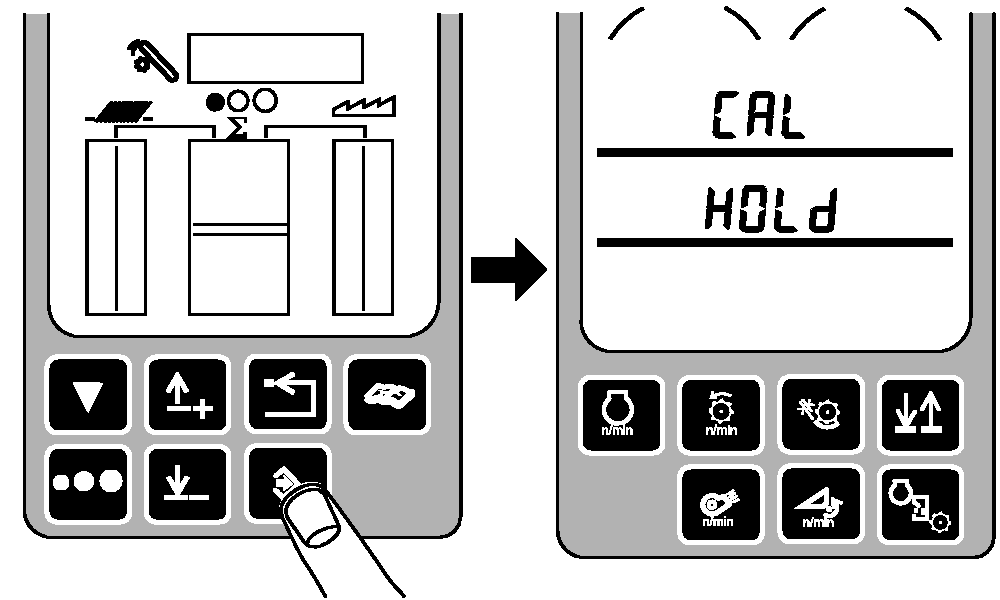

Press the enter switch.

NOTE: When the display has HOLd displayed on the triple display tachometer the sieve is opening and closing automatically.

Hold will be displayed on middle line of triple display tachometer.

H75313

OUO6075,000288D -19-20MAR03-4/6

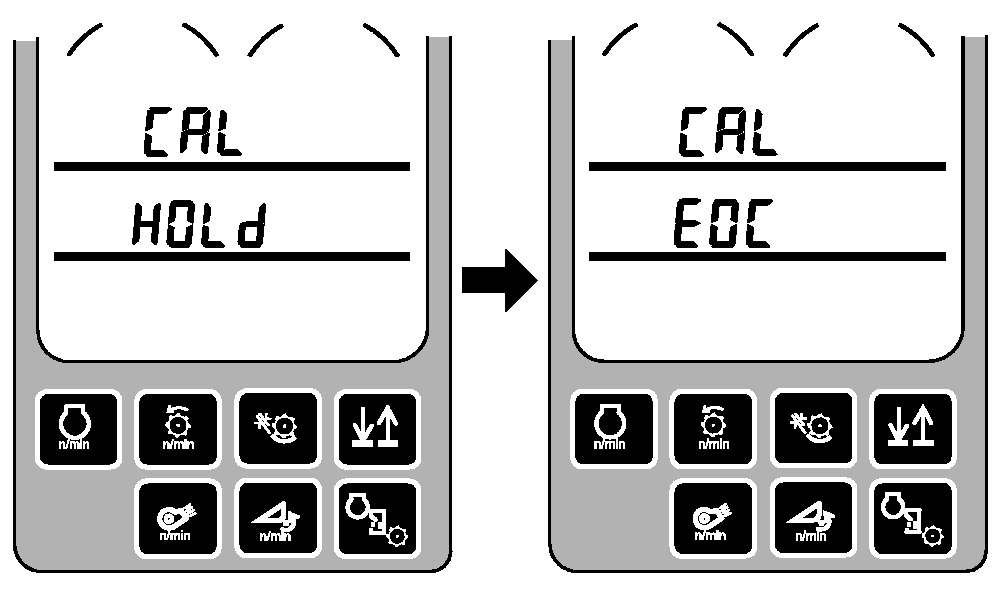

HOLd will change to EOC when calibration is complete.

H74822

OUO6075,000288D -19-20MAR03-5/6

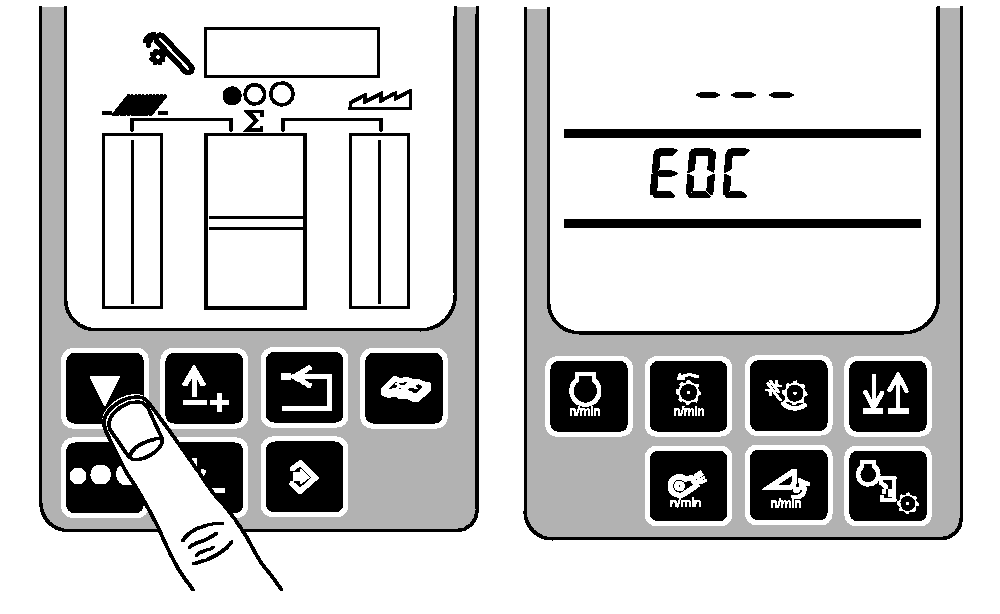

When EOC is displayed on the triple display tachometer press the enter switch. Calibration for sieve is complete.

H68162

OUO6075,000288D -19-20MAR03-6/6
