Sieve Calibration (Optional)-Component Replacement
This procedure must be used when the actuator or element has been replaced. It should also be used after the actuator is removed from the element.
NOTE:
Element play will prevent correct calibration if the sieve is not closed first, then opened to 5 mm (3/16 in.).
Use remote sieve adjust switch to fully close, then open sieve to 5 mm (3/16 in.)
|
|
|
|
OUO6075,000288E -19-20MAR03-1/13
|
|
Press the diagnostic switch. dIA will appear on the triple display tachometer.
|
|
|
|
OUO6075,000288E -19-20MAR03-2/13
|
|

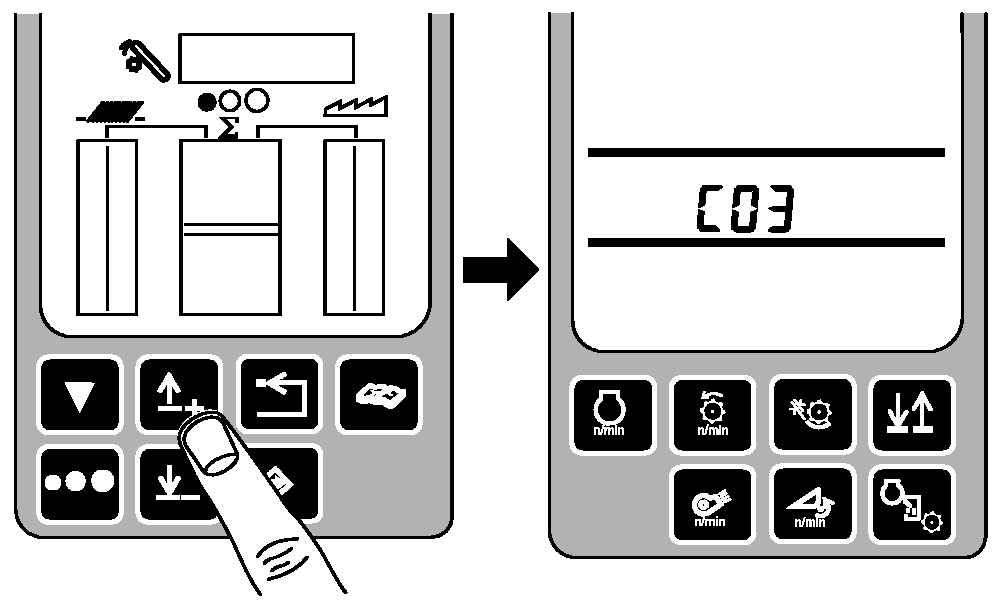

Press up arrow to select C03.
|
|
|
|
OUO6075,000288E -19-20MAR03-3/13
|
|
|
OUO6075,000288E -19-20MAR03-4/13
|
|
NOTE:
0221 is for standard sieve elements and 0331 is for deep tooth sieve elements.

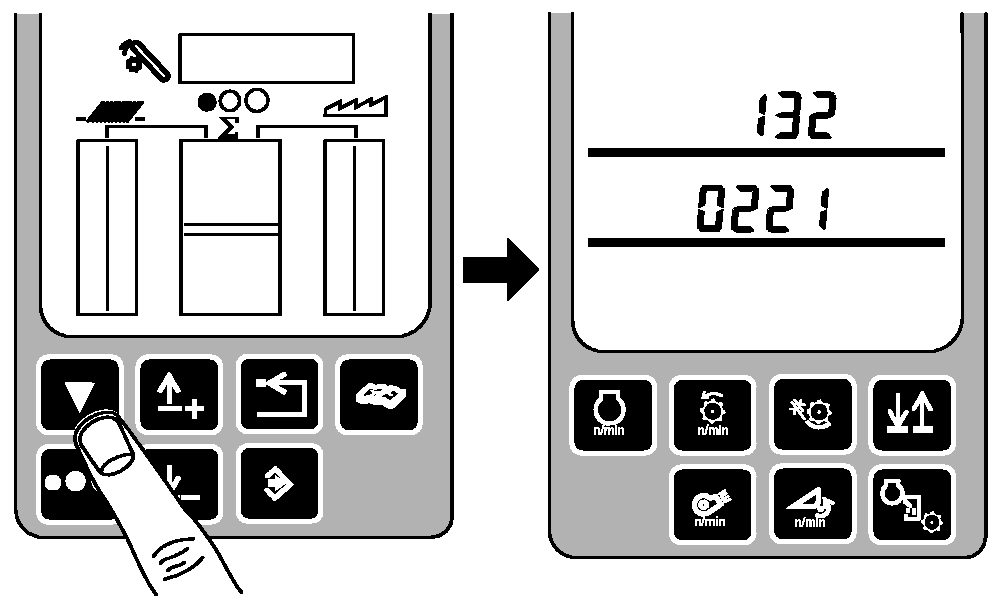

Press up arrow until 132 is displayed. Confirm that the correct numbers are displayed on the second line.
|
|
|
|
OUO6075,000288E -19-20MAR03-5/13
|
|
|
OUO6075,000288E -19-20MAR03-6/13
|
|

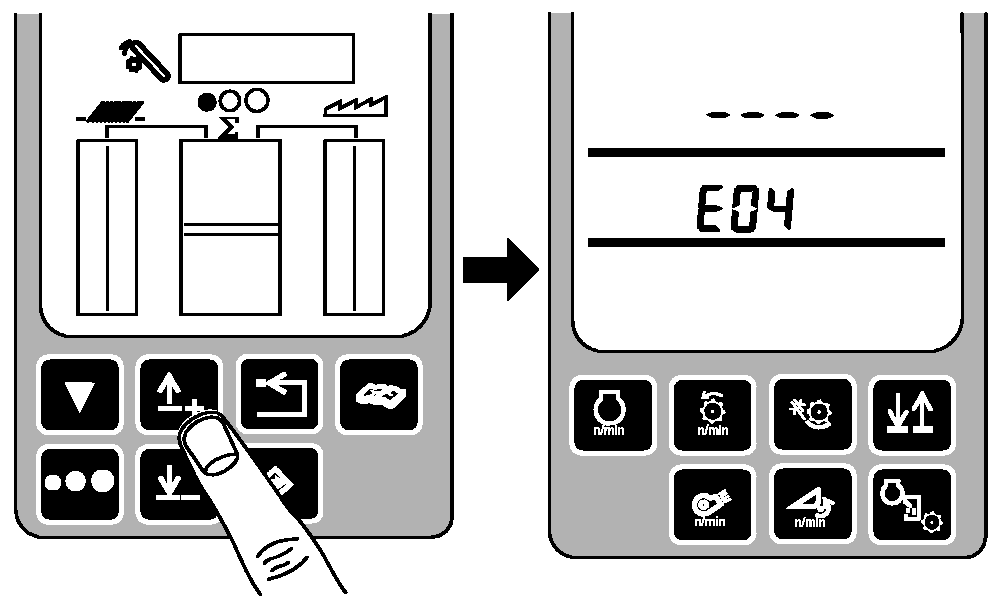

Press the up or down arrow switch until E04 appears on the tachometer.
|
|
|
|
OUO6075,000288E -19-20MAR03-7/13
|
|
|
OUO6075,000288E -19-20MAR03-8/13
|
|

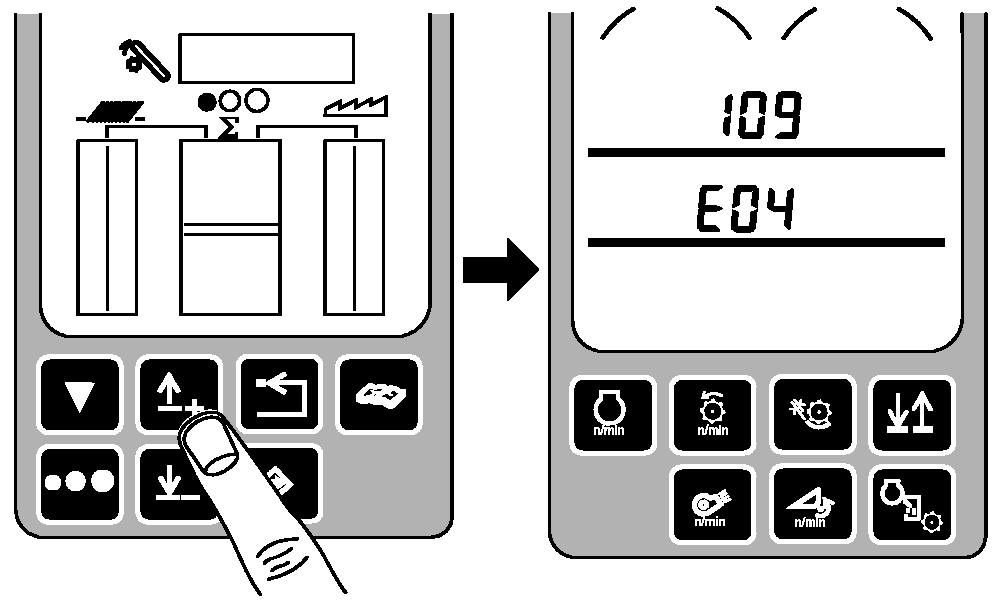

Press the up or down arrow switch until 109 appears on the tachometer.
|
|
|
|
OUO6075,000288E -19-20MAR03-9/13
|
|

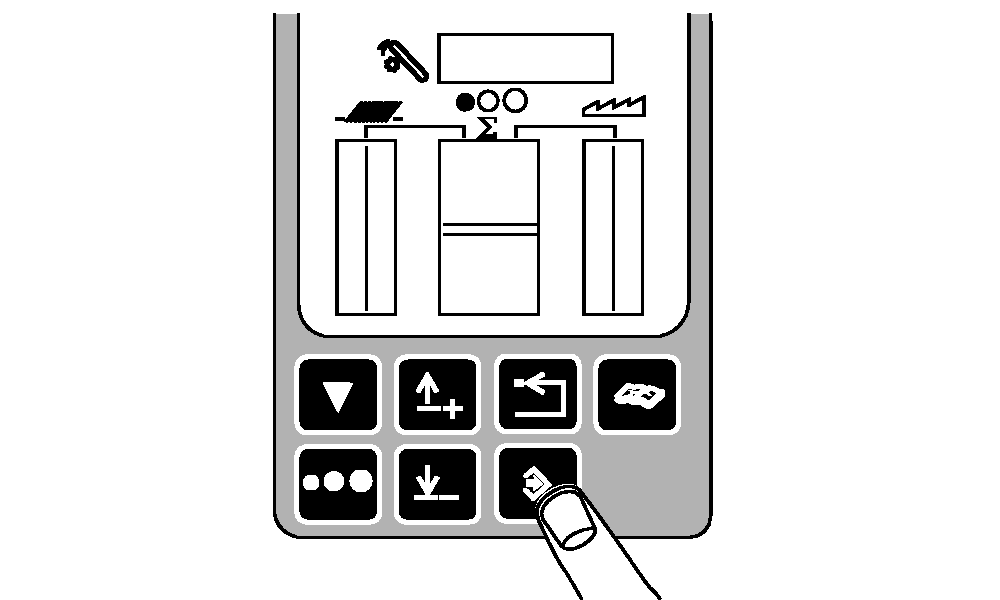

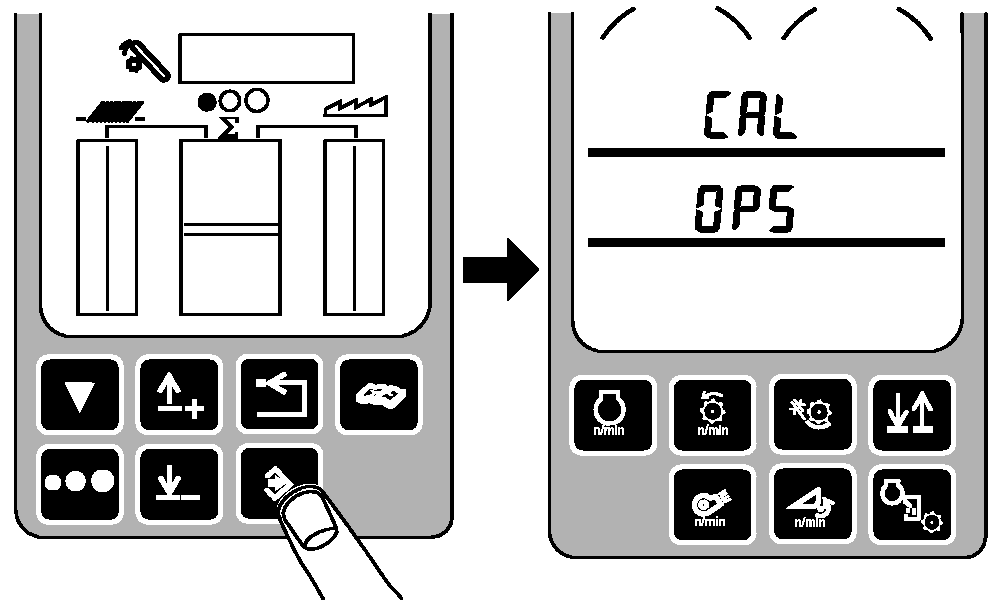

Press enter switch. OP5 will appear on triple display tachometer.
|
|
|
|
OUO6075,000288E -19-20MAR03-10/13
|
|
NOTE:
While HOLd is displayed on the triple display tachometer the sieve element is calibrating itself.

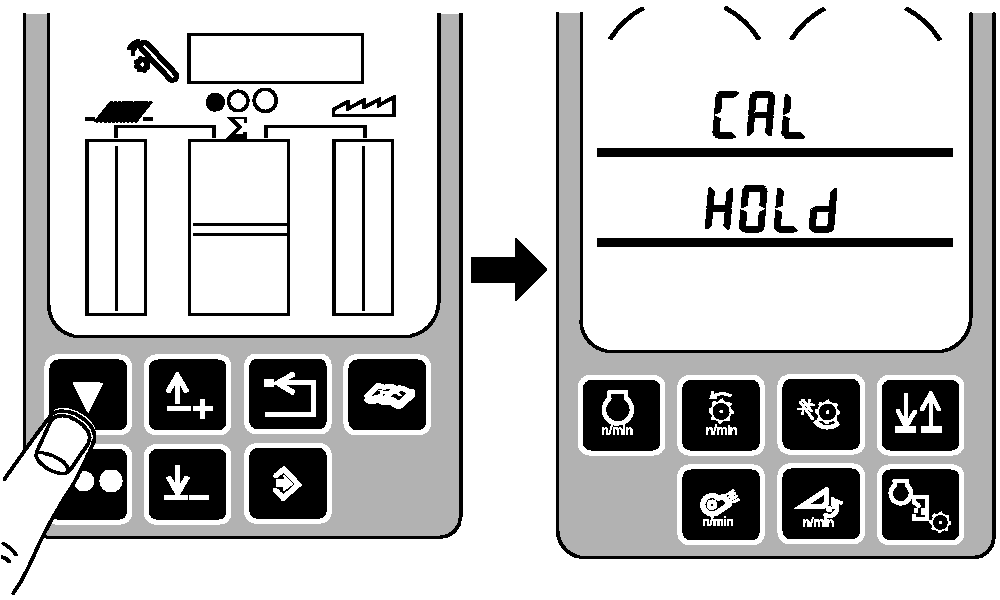

Press calibration switch. HOLd will be displayed on middle line of tachometer.
|
|
|
|
OUO6075,000288E -19-20MAR03-11/13
|
|
HOLd will change to EOC when calibration is complete.
|
|
|
|
OUO6075,000288E -19-20MAR03-12/13
|
|

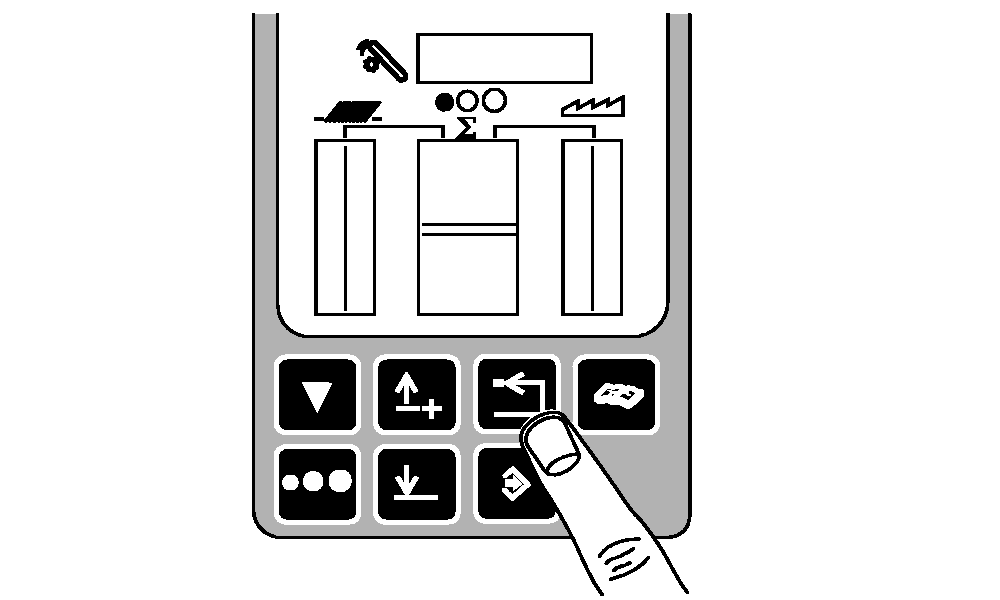

When EOC is displayed on the triple display tachometer press the enter switch. Calibration for sieve is now complete.
|
|
|
|
