Work Lights (Optional)

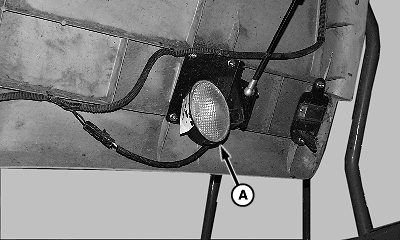

H74766

Side Panel Light, Front Left-Hand

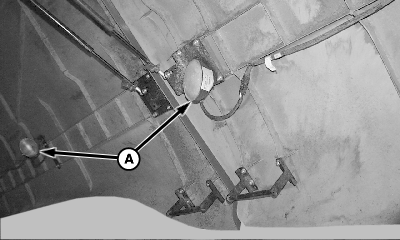

H74768

Side Panel Light, Middle and Rear Left-Hand

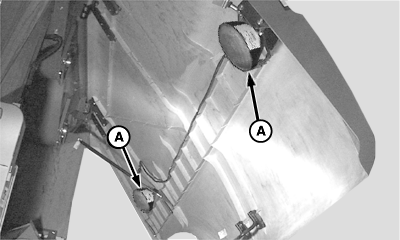

H75105

Side Panel Light, Right-Hand Front and Rear

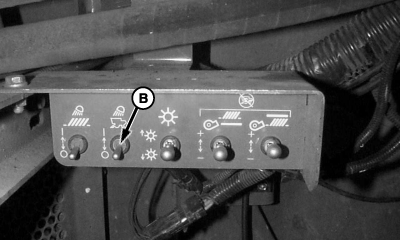

H65921

Side Panel Light Switch


A-Side Panel Lights

B-Side Panel Light Switch



The lights (A) provide outstanding visibility for easier adjustment or maintenance.

The "ON/OFF" switch (B) is located above left-hand side of separator shield.

OUO6075,000291E -19-31MAR03-1/1
