Engine Compartment Work Lights

H74770
H74771
H74772
H74774

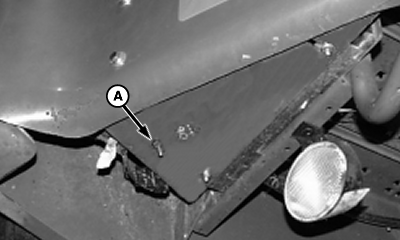

A-Switch

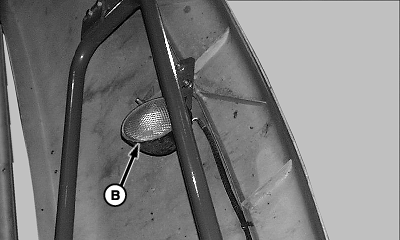

B-Light (Engine Compartment Door)

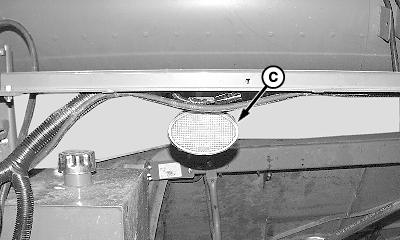

C-Lights (Engine Compartment)

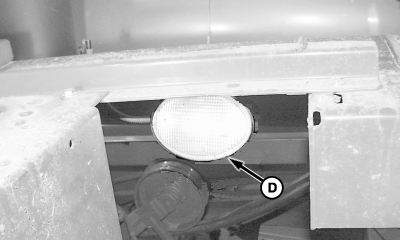

D-Lights (Engine Compartment)

Switch (A) located on the rear right-hand side of the combine, turns light (B) on engine compartment door,

and lights (C) and (D) in engine compartment "ON" and "OFF".

OUO6075,000291F -19-31MAR03-1/1
