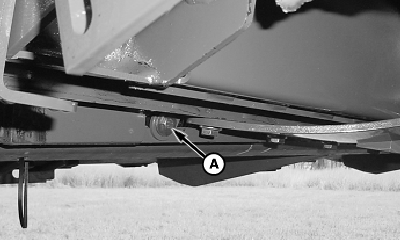

Feeder House Latching Pins (Cleanout)On a CONTOUR MASTER feeder house, if latch pins are hard to move, remove cap screws (A) and cleanout pin area. It may be necessary to fully tilt the feeder house frame in order to access these cap screws.
|
|
OUO6075,0002945 -19-31MAR03-1/1 |
