Right-Hand Side Shields

causym CAUTION: Turn off engine, set park brake and remove key.

Remove quick-lock pin (A) to open rear shield (B) to service belts.


A-Quick-Lock Pin
B-Rear Shield

H62139

OUO6075,0002950 -19-31MAR03-1/2

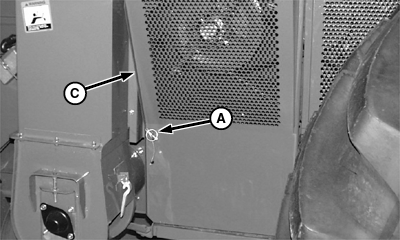

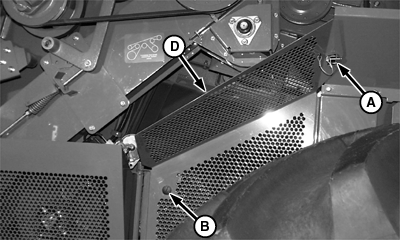

Remove quick-lock pins (A) and (using a screwdriver) turn lock (B) counterclockwise to unlock.

Lift and remove rear shield (C) and middle shield (D).


A-Quick-Lock Pin
B-Lock
C-Rear Shield
D-Middle Shield
