Cleaning Shoe Auger Gears-Adjusting

CAUTION: Raise feeder house and lower safety stop.

Shut off engine, set parking brake and remove key.

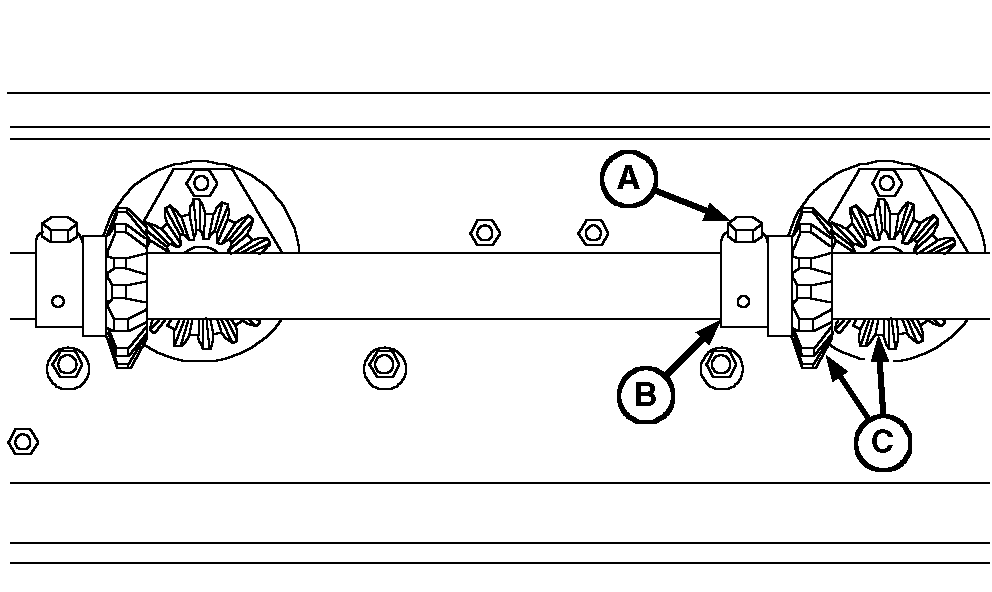

Loosen nut (A) on clamp (B).

Adjust gears (C) until they touch.

Back clamp off 0.8 mm (1/32 in.) and tighten nut. Do not run gears too tight.

A-Nut
B-Clamp
C-Gears

OUO6075,000295C -19-31MAR03-1/1
