Chaffer or Sieve Indicator-Calibration

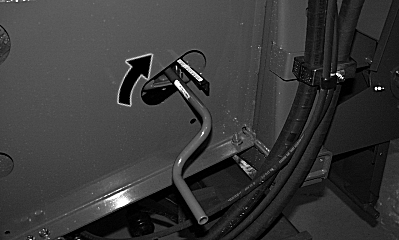

Using crank, close chaffer completely.

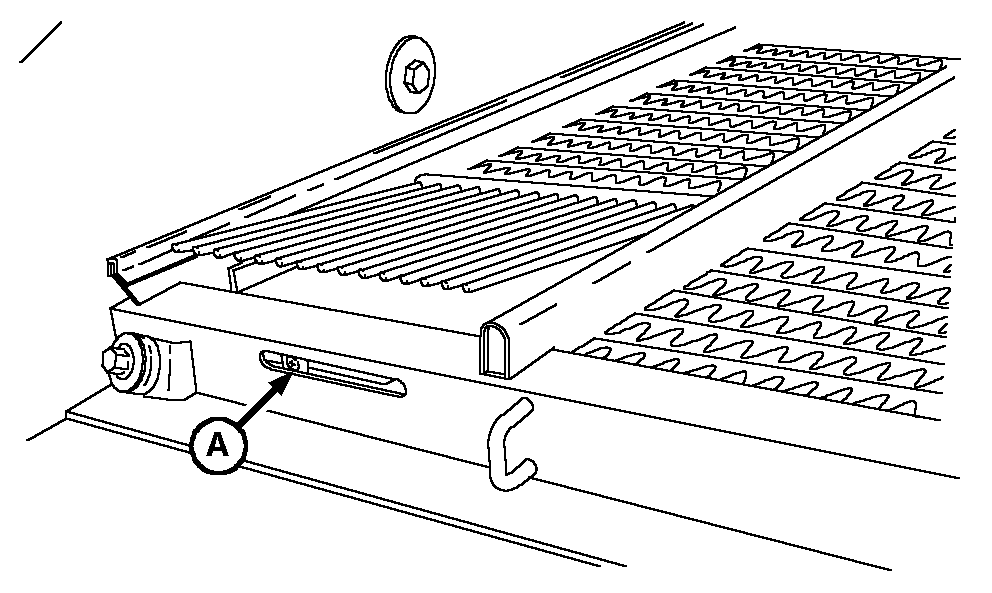

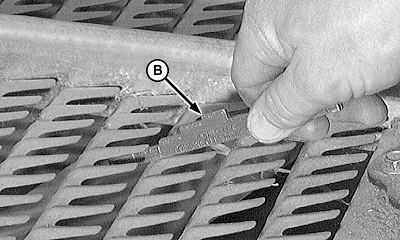

Loosen set screw (A) at the rear left-hand corner of chaffer (opening in chaffer frame). Open the chaffer slowly until opening measures approximately 8 mm with combine clearance gauge (B).

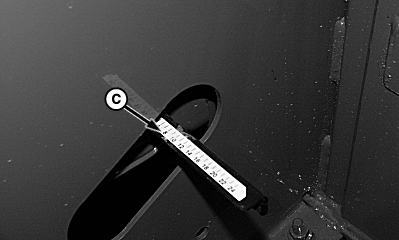

Slide opening gauge in or out until gauge reads 8 mm (C) from side sheet. Tighten set screw at the rear of chaffer.

Use this procedure to also calibrate the sieve.

A-Set Screw
B-Gauge
C-Gauge Reading of 8 mm

OUO6075,0002965 -19-31MAR03-1/1
