Sieve-Remove And Install

causym CAUTION: Shut off engine and remove key to help prevent accidental starting and personal injury.

1. Remove chaffer.

2. Loosen gauge adjustment screw in sieve element.

NOTE: Sieve opening gauge, set screw and retainer bolts are similar to chaffer.

3. Slide sieve opening gauge (A) inside sieve element.

4. Remove retaining bolts on both sides.

5. Remove sieve out rear of machine.

6. Inspect grain seals on sieve element.

7. Repair or replace as necessary.

8. Install sieve in rear of machine.

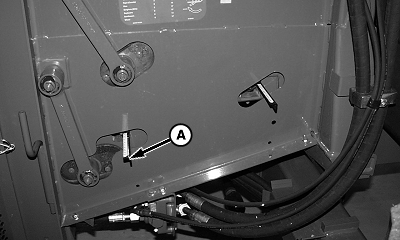

H72110


A-Sieve Opening Gauge

OUO6075,0002967 -19-31MAR03-1/4

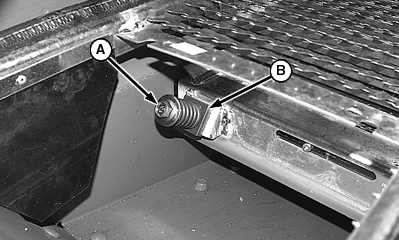

9. Install sieve retaining bolts (A) with additional 10 mm block (B) between star washer and spring. Tighten to specification.

Specification

Sieve Retaining Bolts -Torque 100 N·m (74 lb-ft)

10. Slide sieve opening gauge (A) through sidesheet.

11. Calibrate gauge to proper dimension.

a. Crank sieve to full open position.

H64554


A-Sieve Retaining Bolt
B-10 mm Block

OUO6075,0002967 -19-31MAR03-2/4

b. Close slowly until average opening measures approximately 8 mm with combine clearance gauge (A).


A-Combine Clearance Gauge

H54012

OUO6075,0002967 -19-31MAR03-3/4

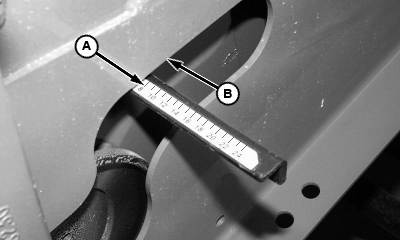

c. Slide opening gauge (A) to read 8 mm mark at sidesheet (B).

d. Tighten gauge adjustment screw in sieve element.

12. Install chaffer.


A-Opening Gauge
B-Sidesheet

H65776

OUO6075,0002967 -19-31MAR03-4/4
