Chopper to Windrow Position

CAUTION: Shut off engine, set park brake and remove key.

NOTE: Chopper tensioner arm must be in the detensioned belt position to raise chopper. If arm is in the tensioned position, safety switch (A) will not allow chopper to be raised.

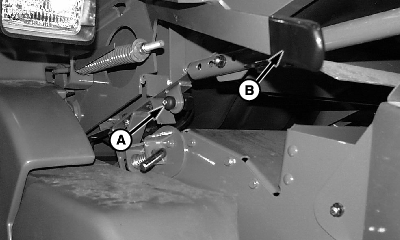

Pull arm (B) down, outward and up to release chopper belt tension.

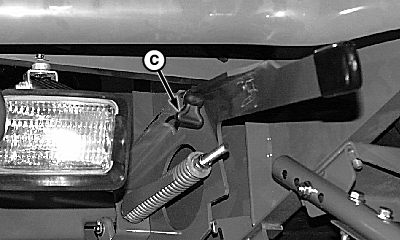

Install rubber strap (C) to hold arm in the detensioned belt position.

A-Safety Switch
B-Arm
C-Rubber Strap

OUO6075,00029BC -19-31MAR03-1/3

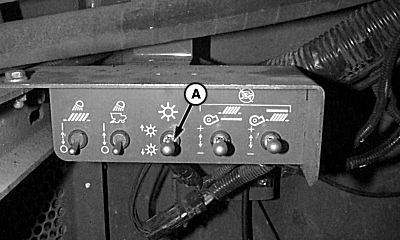

Switch (A), located on the left-hand side sheet above rear axle, raises and lowers the chopper. Push switch up to raise chopper.

Raise chopper assembly until lock-out pins snap into place.

A-Switch

OUO6075,00029BC -19-31MAR03-2/3

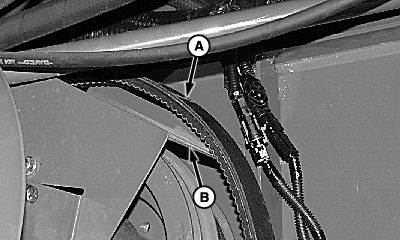

Place drive belt (A) on top of guard (B), so belt does not turn while chopper is in the windrow position.

A-Drive Belt
B-Guard
