Grain Tank Full Indicator

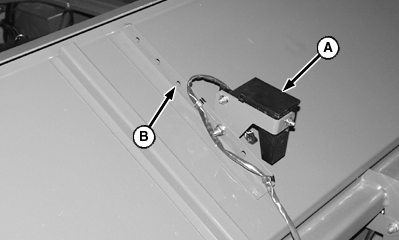

Sensor (A) is located inside front right of grain tank. It turns "ON" a green light on warning display panel and a buzzer until the sensor is de-activated.

The green light turns "ON" immediately but there is a two second delay between the tripping of the sensor and the buzzer sounding.

Header drive must be on for the buzzer to sound.

CAUTION: Set parking brake, shut off engine and remove key.

Adjust sensor by moving it up or down in holes (B). This adjusts the switch "trip" point. The higher the sensor, the fuller the grain tank will be at the time the buzzer sounds. If higher grain tank fill is desired, the mounting bracket can be reversed.

IMPORTANT: When the bracket is reversed, the bracket will then be higher than the grain tank extension.

A-Sensor
B-Holes
