Rear Discharge Light, Access Door Work Light, and (Optional) Stubble Light Bulb-Replacement

NOTE: (For important safety information regarding halogen bulbs, see Safety Rules When Replacing Halogen Bulbs in this section before performing this procedure.

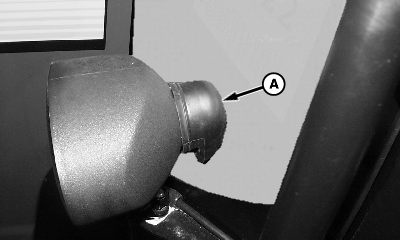

1. Remove rubber boot (A) from light.

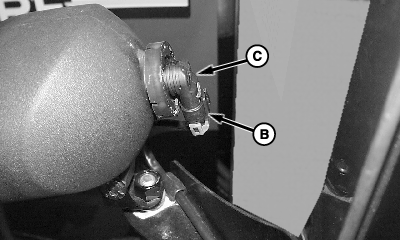

2. Disconnect harness connector (B) from bulb assembly (C).

3. Rotate bulb assembly counterclockwise approximately 1/4 turn and remove.

4. Install replacement bulb in reverse order of removal.


A-Boot
B-Harness Connector
C-Bulb Assembly

H74801

Right-Hand Stubble Light Shown

H74802
H74803

OUO6075,00029E2 -19-31MAR03-1/1
