Hydrostatic/Hydraulic Oil Level

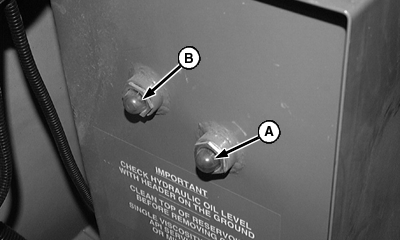

Check oil level with header on ground and all cylinders retracted. Oil must cover sight glass (A) and be below top of sight glass (B). Add oil as needed. Do not over fill.

With engine off, check hydraulic oil at engine gear case. Oil must not be below the low mark on dipstick (C). Do not overfill.

A-Sight Glass
B-Sight Glass
C-Dipstick

OUO6075,0002A02 -19-31MAR03-1/1
