Stopping the Engine

1. Lower header or reel to the ground. If equipped with optional reel fore/aft, move reel all the way forward.

2. Move multi-function handle (A) to neutral and stop header (B) and separator (C).

IMPORTANT: Cooling of turbocharger and some engine parts is provided by engine oil. Stopping a hot engine might cause damage to these parts.

3. Before stopping an engine that has been operating at working load, idle engine at least two to three minute to allow turbocharger to cool.

causym CAUTION: Remove key from switch and set parking brake before leaving the combine.

4. Turn key and all other switches off.

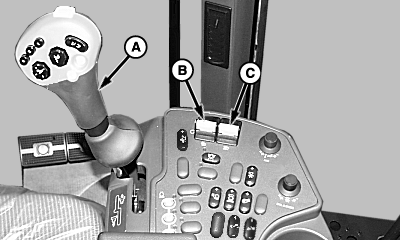

H74754


A-Multi-Function Handle
B-Header Switch
C-Separator Switch

OUO6075,0002A0C -19-31MAR03-1/1
