Rear Ladder and Landing

CAUTION: Shut off engine, set parking brake and remove key.

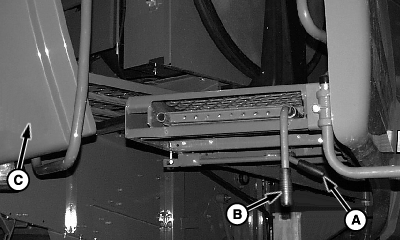

Push up on handle (A) and swing ladder out until it latches.

Use handle (B) to pull ladder rearward.

Swing panel (C) rearward.

A-Handle
B-Handle
C-Panel

OUO6075,0002A10 -19-31MAR03-1/1
