Air Cleaner Filters-Removing

IMPORTANT: When servicing filters, turn off engine and remove key so dirt cannot be pulled into engine.

Service filters only when engine air filter light stays "ON".

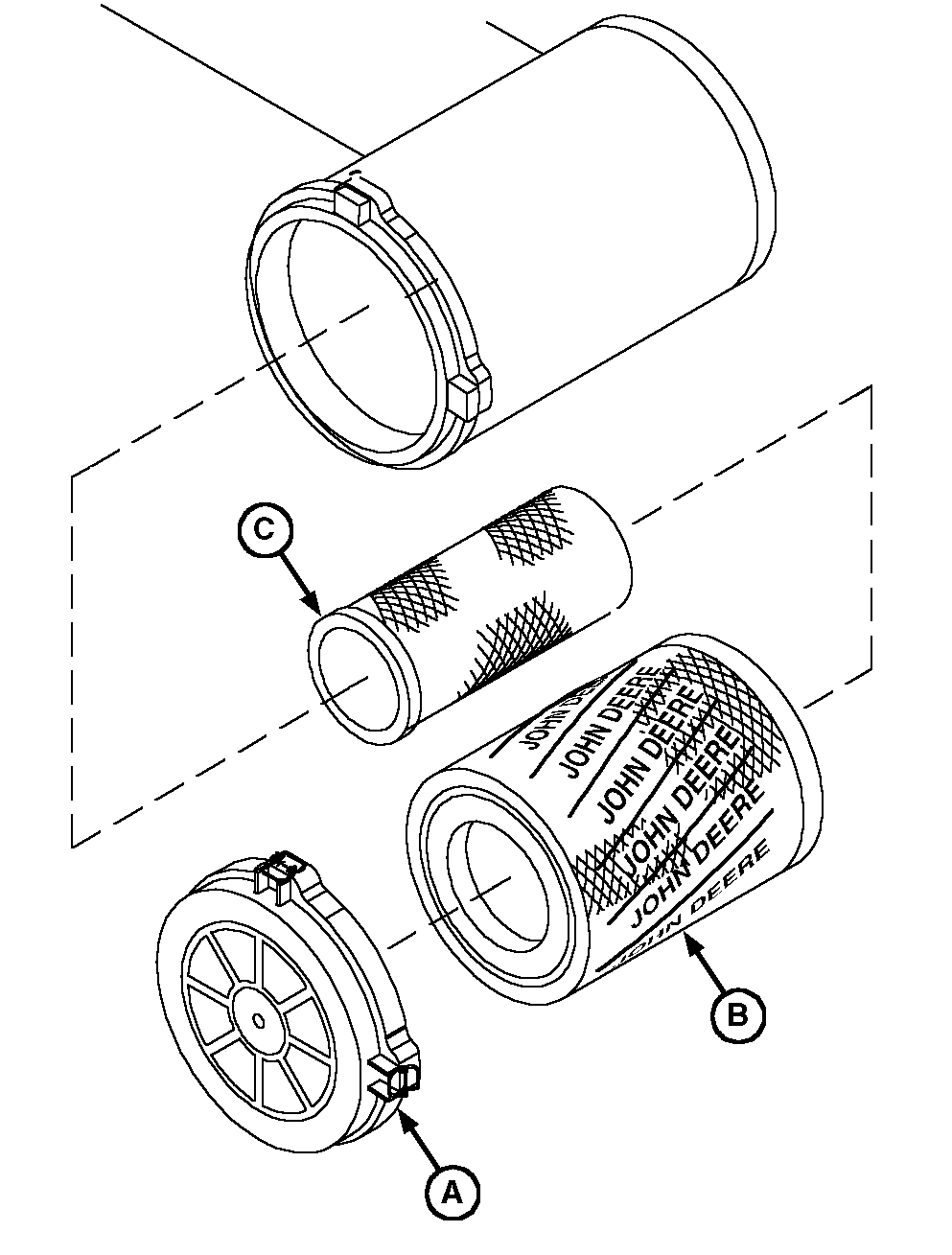

Unsnap dust cover (A) and remove primary air filter (B). Do not remove safety element (C) unless it is plugged. The safety filter stops dirt that would pass through a damaged primary filter.

Clean or replace primary filter. Do not clean or wash safety filter, but install a new one if needed. Do not remove metal wrap on filter.

IMPORTANT: Never run the engine without both filters in place.

Check all connections in the air intake system. Be certain they are tight.

IMPORTANT: Do not use any exhaust flow cleaning unit to blow chaff off combine. Using such a unit can cause air filter failure, followed by engine failure.

A-Dust Cover
B-Primary Air Filter
C-Safety Element

OUO6075,0002A35 -19-31MAR03-1/1
