Chopper Tailboard-Adjusting

CAUTION: Shut off engine, set park brake and remove key.

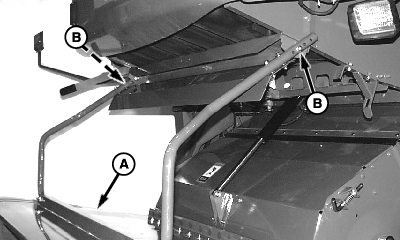

Adjust tailboard (A) up or down to control straw spread width.

To adjust tailboard, remove cap screws (B) and adjust tailboard up or down. Attach tailboard with cap screws and tighten.

A-Tailboard
B-Cap Screws

OUO6075,0002A68 -19-01APR03-1/1
