Chopper Drive Belt Tension-Adjusting

CAUTION: Shut off engine, set park brake and remove key.

Chopper belt idlers are located on the left-hand side of the combine above the chopper.

Spring tensioning assembly must be in the drive engaged position.

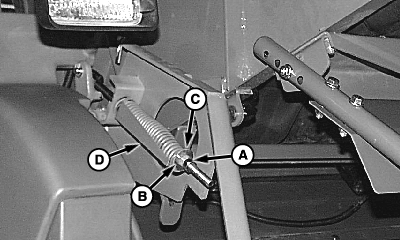

Loosen lock nut (A).

Tighten nut (B) until washer (C) aligns with the end of gauge (D). Tighten lock nut.

A-Lock Nut
B-Nut
C-Washer
D-Gauge

OUO6075,0002A6B -19-01APR03-1/1
