Chaffer/Sieve Motor (Optional)-Manual Adjust

NOTE: Same manual adjust procedure can be used on the chaffer or sieve motor.

1. Remove cap screws (A) to access motor.

A-Cap Screws

OUO6075,0002B0C -19-09APR03-1/2

IMPORTANT: To prevent adjusting motor damage do not use wrench on knurled knob.

NOTE: Once chaffer or sieve adjusting motor has been repaired or replaced the adjusting motor will have to be re-calibrated. (See Sieve Sensor Calibration and Chaffer Sensor Calibration).

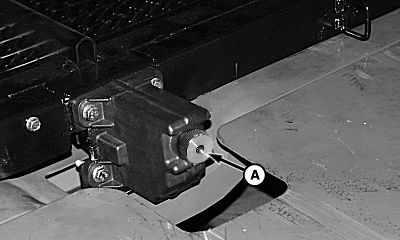

2. Use knurled knob (A) to adjust motor. Turn nut clockwise to close and counterclockwise to open chaffer/sieve.

A-Knurled Knob
