IMPORTANT: Service times are for average conditions. Service more often if combine is used in extreme conditions.

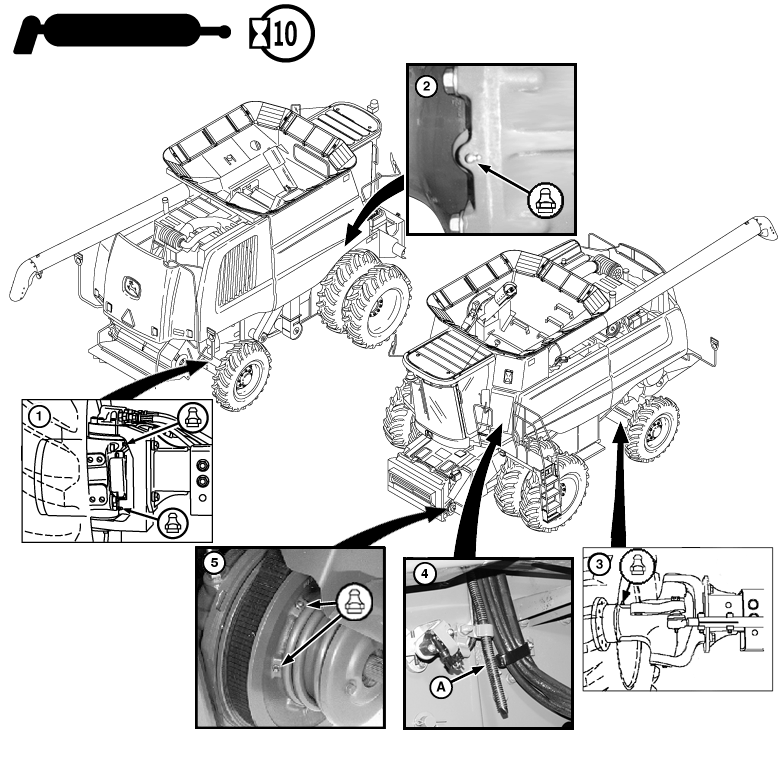

1. Motor Pivots Two Speed Four Wheel Drive (both sides).

Lube two fittings.

2. Final Drive Outer Bearings. When operating in mud and water, grease at 10 hours. In normal conditions grease at 50 hours.

OUO6075,0002B1E -19-17APR03-1/2

NOTE: When operating in mud and water grease rear axle spindle bearings and motor pivots at 10 hours. In normal conditions grease at 50 hours.

Grease rear hubs until grease purges from inner seal.

3. Heavy Duty Axle Spindle Bearings (both sides). When operating in mud and water, grease at 10 hours. In normal conditions grease at 50 hours.

4. Air Conditioning Drain Hose. Clean air conditioning drain hose (A).

5. Feeder House Reverser Drive Gear Case. When operating in severe conditions or high yielding corn, grease each fitting (2 - 3 times) every 10 hours. When operating in normal conditions, grease each fitting (10 - 15 times) every 50 hours.

OUO6075,0002B1E -19-17APR03-2/2
