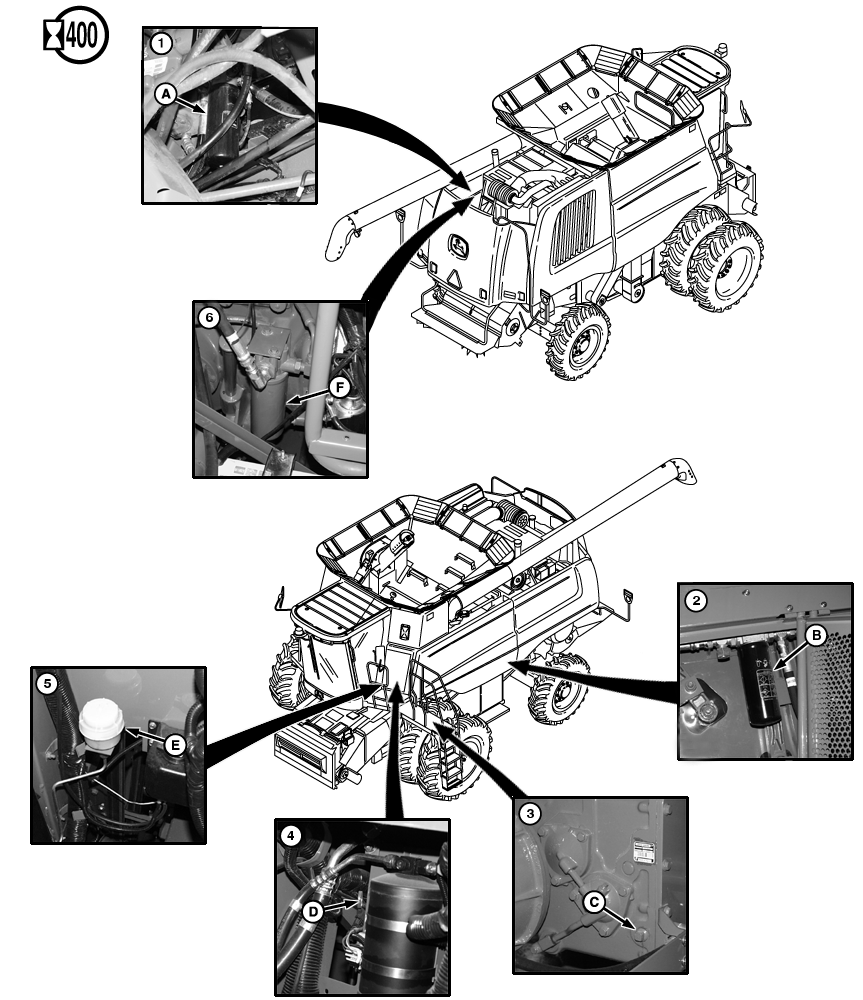

A-Hydraulic/Hydrostatic Filter
B-Hydro Charge Filter

C-Plug
D-Dipstick

E-Brake Fluid Reservoir Cap

F-Engine PTO Gear Case Filter

OUO6075,0002B2A -19-17APR03-1/2

NOTE: It is not necessary to drain system when installing filters.

2. Hydro Charge Filter (B). Remove filter, coat seal with oil and install new filter. Hand tighten then tighten 1/2 turn more.

3. Transmission. Remove plug (C) and check level. Add oil as needed until within 12 mm (1/2 in.) of bottom of hole.

4. Primary Countershaft Gear Case Oil Level. Check oil level at dipstick (D). Add oil as needed.

5. Brake Fluid Reservoir. Look through cap (E). Add brake fluid to within 6 mm (1/4 in.) from top. Do not let dirt get into brake fluid.

6. Engine PTO Gear Case Filter (F). Remove filter, coat seal with oil and install new filter. Hand tighten then tighten 1/2 turn more.

OUO6075,0002B2A -19-17APR03-2/2
